Automotive Paint Booths

Automotive paint booths are built for performance. Code compliance, safety, and proper ventilation are the basis for the need, however, automotive finishing requires much more power, airflow performance, and cleanliness to reproduce a factory finish.

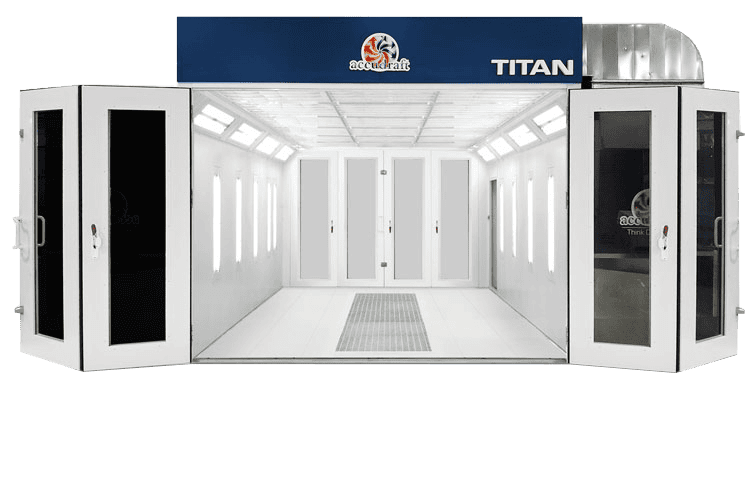

Titan paint booth in blue

Titan Downdraft Paint Booth

The Accudraft Titan™ is the ultimate in spray booth technology and high speed finishing production. Airflow and workspace conditions are engineered and optimized for the latest low VOC & waterborne paints on the market today.

Learn More

Italia paint booth in blue

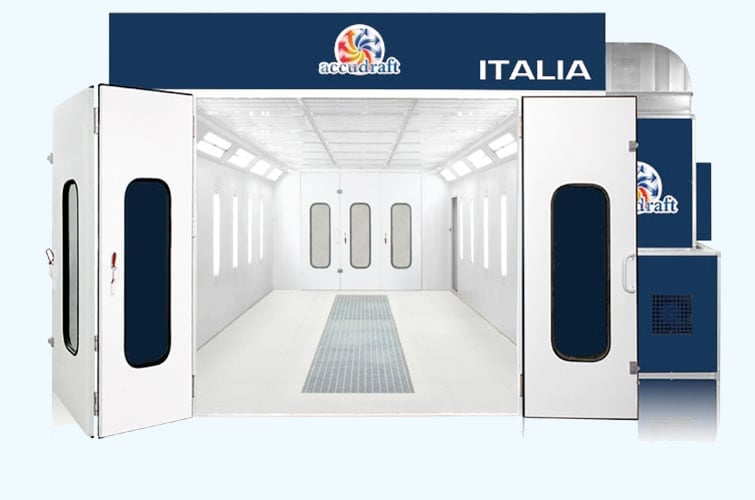

ITALIA Downdraft Paint Booth

Accudraft’s flagship downdraft paint booth system designed for high production. With a 40 year reputation for speed and durability, the ITALIA continues to represent the gold standard for automotive refinishing.

Learn More

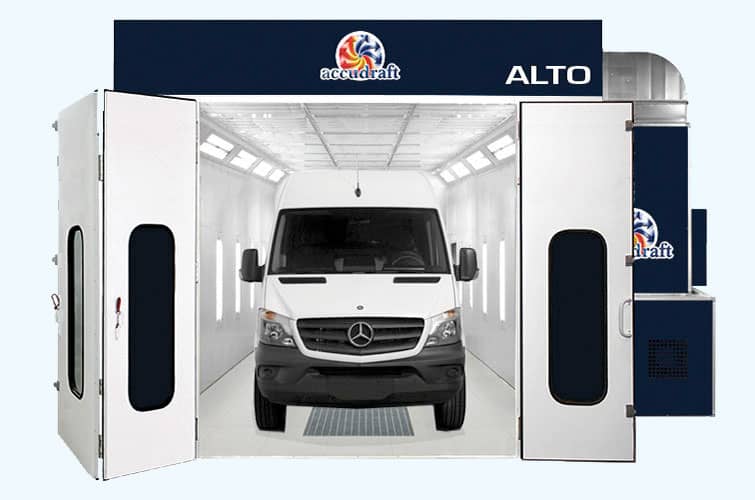

Alto Downdraft Paint Booth

Accudraft’s Italia Alto features all the same high-grade features of our Italia, yet cabin designed around Ford Transit and Amazon vehicles for an internal height clearance of 12 feet. Superior quality, durability and speed that epitomizes the Accudraft brand.

Learn More

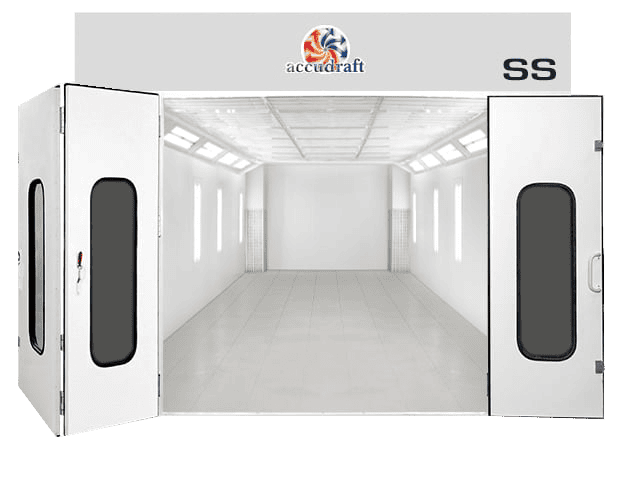

SS paint booth in white

SS Space Saver Paint Booth

The Accudraft SS is a space saving high-performance paint booth that allows the user to spray, flash, cure, and cool down in order to increase production. A small footprint and built-in overhead air mechanicals save valuable shop space.

Learn More

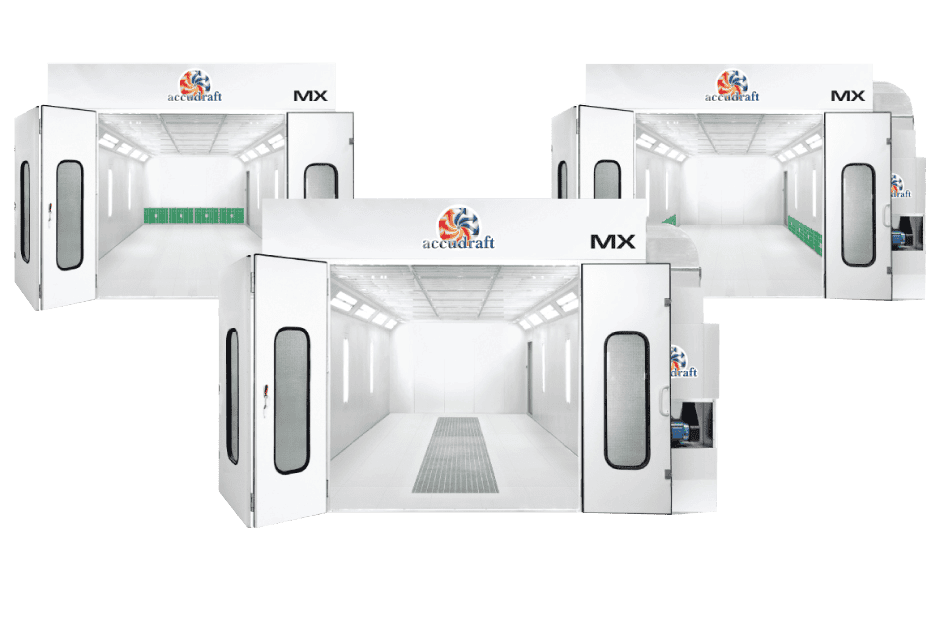

MX Series paint booth in different drafts

MX Series Paint Booths

Accudraft’s MX series paint booths provide the most options and flexibility when deciding what fits your shop best. The MX series paint booth systems are available in semi downdraft, side draft, and downdraft configurations.

Learn More

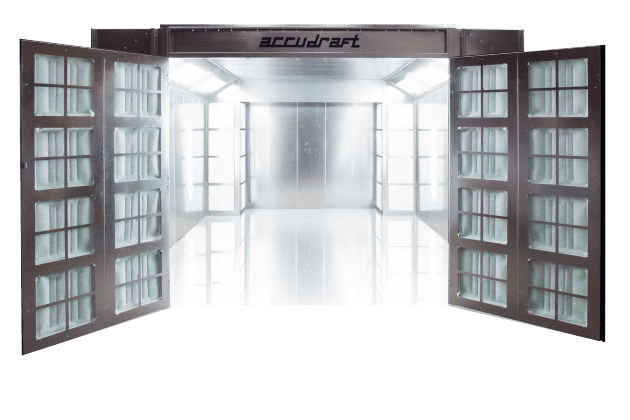

Accudraft pro series crossflow paint booth

PRO Series Paint Booths

Economic paint booth and finishing solutions made in various configurations. Non-heated or add heat if you need it. Available in galvanized or white finish.

Learn More

Quality Automotive Paint Booths

Accudraft’s MX series paint booths provide the most options and flexibility when deciding what fits your shop best. The MX series paint booth systems are available in semi downdraft, side draft, and downdraft configurations. Single wall or dual skin construction and a multitude of air handler configurations allow you to build a paint booth that has exactly what you need in the shape and size that works best for you.

Crossdraft airflow for auto paint booth

Crossdraft

A crossdraft paint booth, also known as a “crossflow” paint booth makes air flow directly across the vehicle that is being painted from the front doors to the back wall of the paint booth.

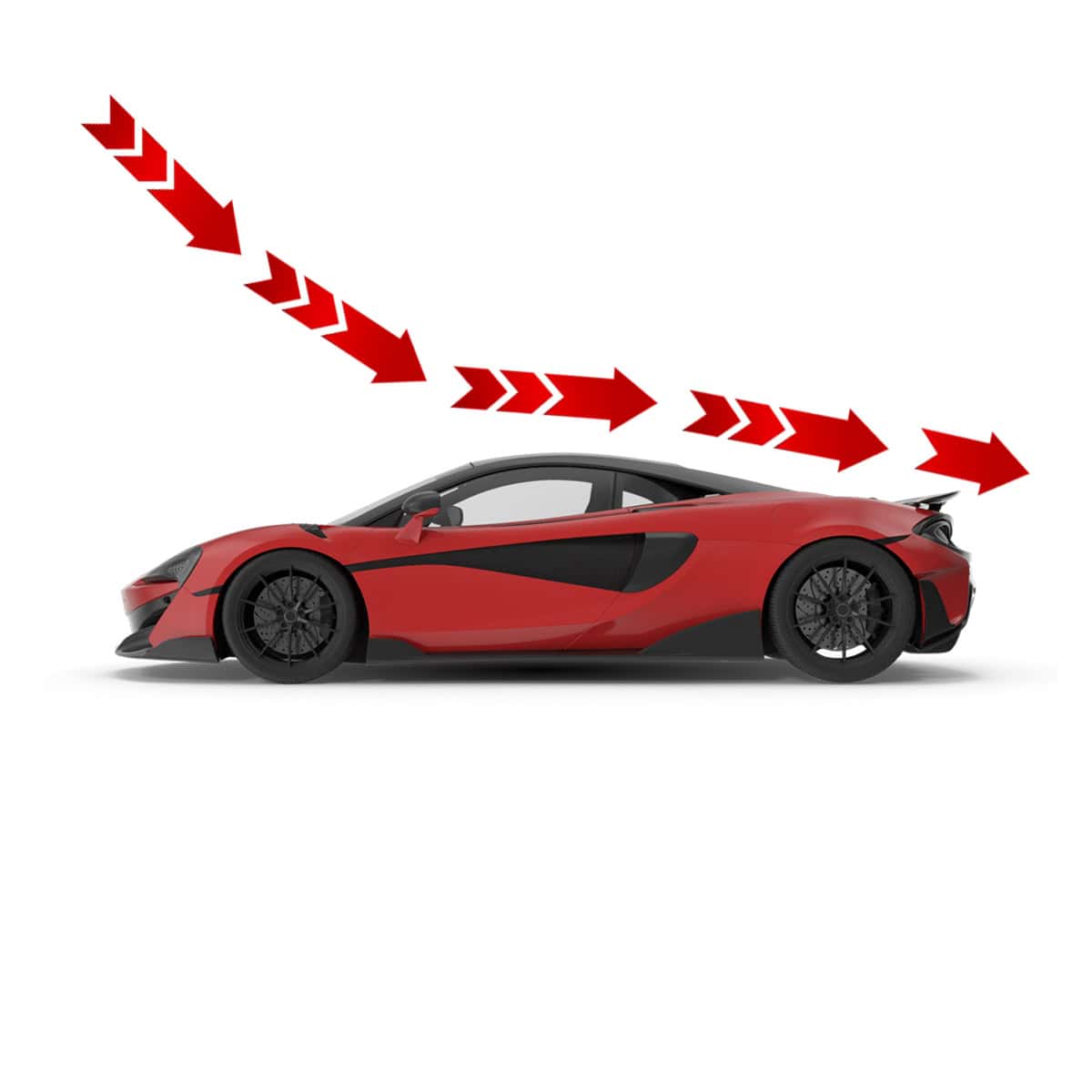

Semidowndraft airflow for auto paint booth

Semi Downdraft

A semi downdraft paint booth operates much like the crossdraft or crossflow paint booth because the incoming air is toward the front of the paint booth and the exhaust is still achieved through the rear of the booth.

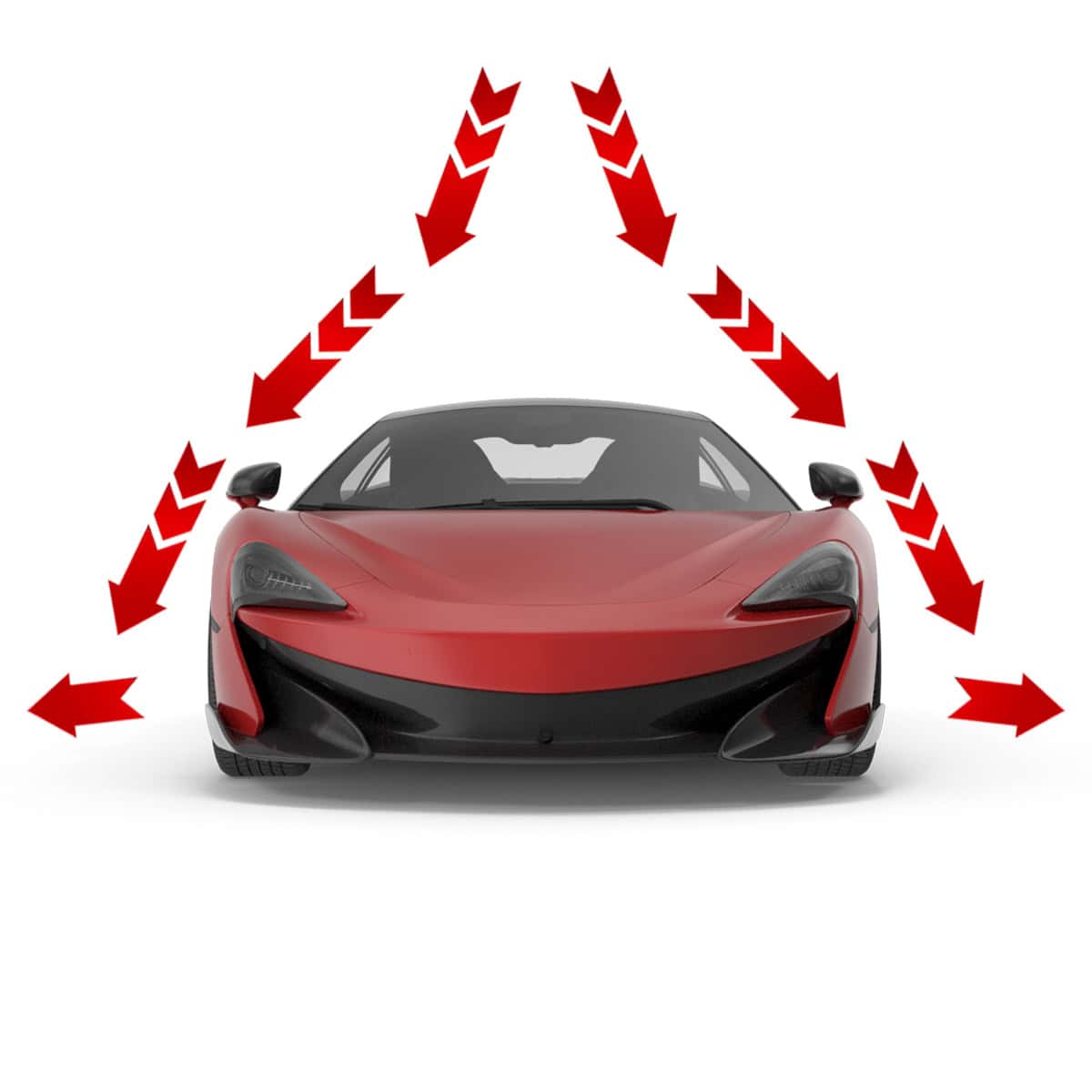

Sidedraft airflow for auto paint booth

Side Draft

A side draft paint booth operates by bringing in filtered air through the ceiling and exhausting it through the sidewalls of the workspace.

Downdraft airflow for auto paint booth

Downdraft

A downdraft paint booth produces a draft pattern that runs straight down from the ceiling to the floor and is the most efficient and clean option available on paint booths.

News

Your Powder Coating Booth Maintenance Checklist
The Importance of Paint Booth Lighting
Improving Paint Booth Air Quality

Over 30 years of automotive paint booth engineering brings you unmatched build quality and unstoppable performance.

Accudraft has been a world leading finishing system manufacturer since 1977. Producing quality paint booths in the automotive and truck refinish market for over 35 years has earned Accudraft a strong reputation that is synonymous with durability, performance, and product support.

There are various types of paint booths sold for a wide range of purpose. Paint booths can be used for artistic purposes, such as for painting a sculpture, and they are also commonly used to paint cars, vehicles, airplanes, trucks and other modes of transportation. The purpose of a paint booth is to control the environmental conditions while an object is being spray-painted. Automotive paint booths use extraction fans and specialized ventilation systems to remove chemical fumes from strong paints as well as dust particles, overspray and other contaminants that can affect the paint job. Paint booths can also regulate the temperature and humidity within the area, which allows the paint to be applied properly. Using a paint booth with heating technology can also bake the paint job in order for it to cure quickly and efficiently, which reduces the risk of scratches and other damage to the surface of the product.

There are various styles of paint booths available on the market and the type of booth you choose for your facility depends on many factors. The shop size, the volume of jobs to be done per day and the types of vehicles you will be painting will all help you to determine the right paint booth for your shop. Whether you are looking for a fully heated, high production paint booth or a simple non-heated booth with basic features, Accudraft has you covered.

The Main Types of Automotive Paint Booths

There are four main types of automotive paint booths to choose from including a crossdraft booth, semi downdraft, sidedraft and downdraft.

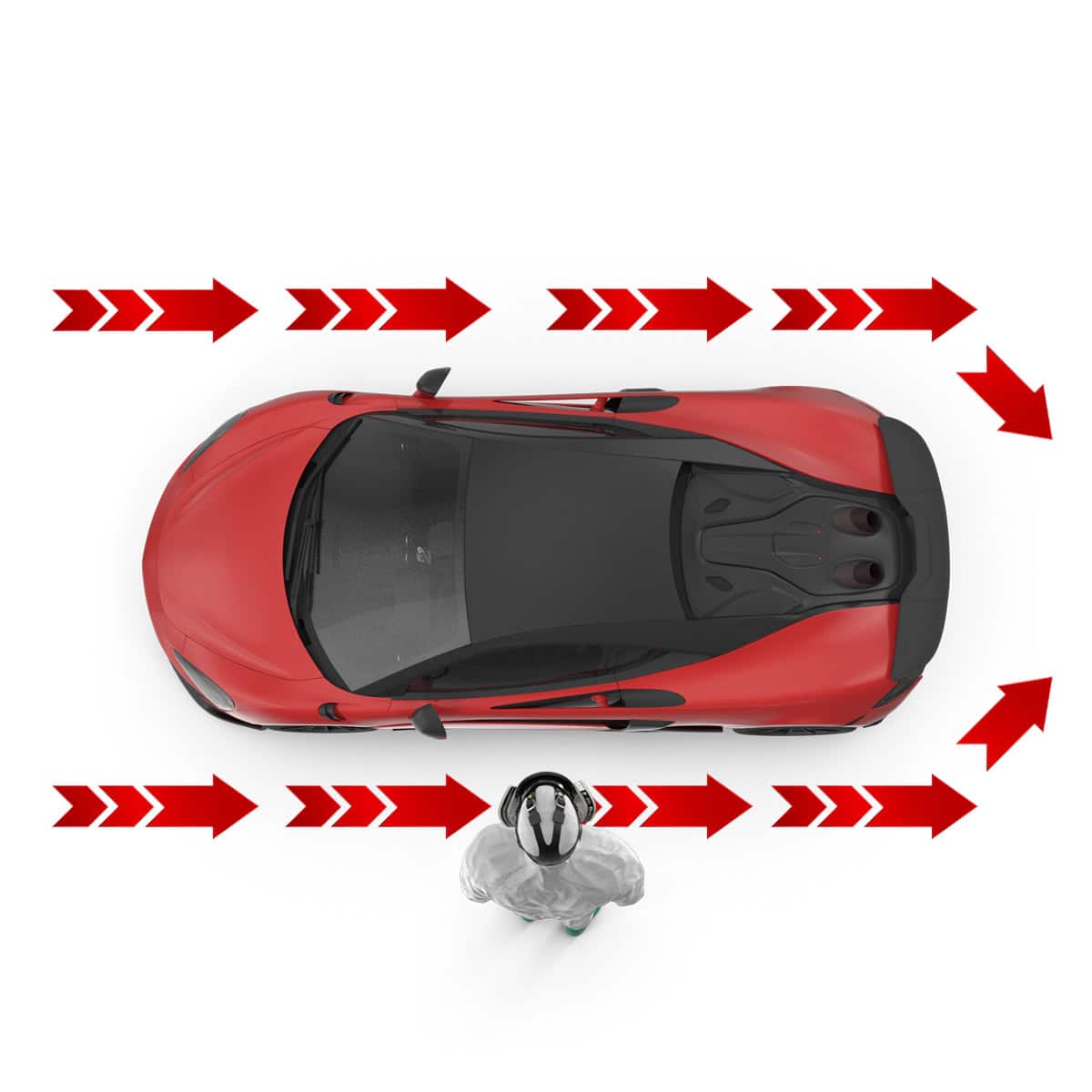

Crossdraft:

A crossdraft paint booth allows the air the flow directly across the vehicle that is being painted. These are extremely popular in the automotive and truck industry, because they are economic and they easily meet all the standards and codes for a painting facility. The way a crossdraft paint booth works is that the incoming air is drawn directly through the main doors or through filtered columns in the front corners of the paint booth. The exhaust is accomplished through another set of columns located towards the rear of the paint booth. The air basically circulates around the sides of the vehicle. Crossdraft booths are constructed with the least amount of materials than any other paint booth, meaning they are offered at a lower cost and they also don’t need any concrete work.

Semi Downdraft:

A semi downdraft paint booth operates much like the crossdraft because the exhaust is still achieved through the rear of the paint booth. The main difference is that the incoming air is now coming in through a small section in the ceiling, which is located at the front of the paint booth. This creates a diagonal draft pattern that moves contaminants away from the vehicle being painted. The main disadvantage of the semi downdraft booth (as well as the crossdraft) is that the painter is most likely going to be standing in the way of the draft and will be exposed to more overspray than need be.

Side Draft:

A side draft paint booth operates by bringing in filtered air through the ceiling and exhausting it through the sidewalls of the workspace. This style creates an even airflow around the painted object and draws overspray and contaminants down and away from the finish, which makes for a cleaner environment and more efficient paint job. In terms of materials used for construction, a side downdraft booth is the most expensive to manufacture.

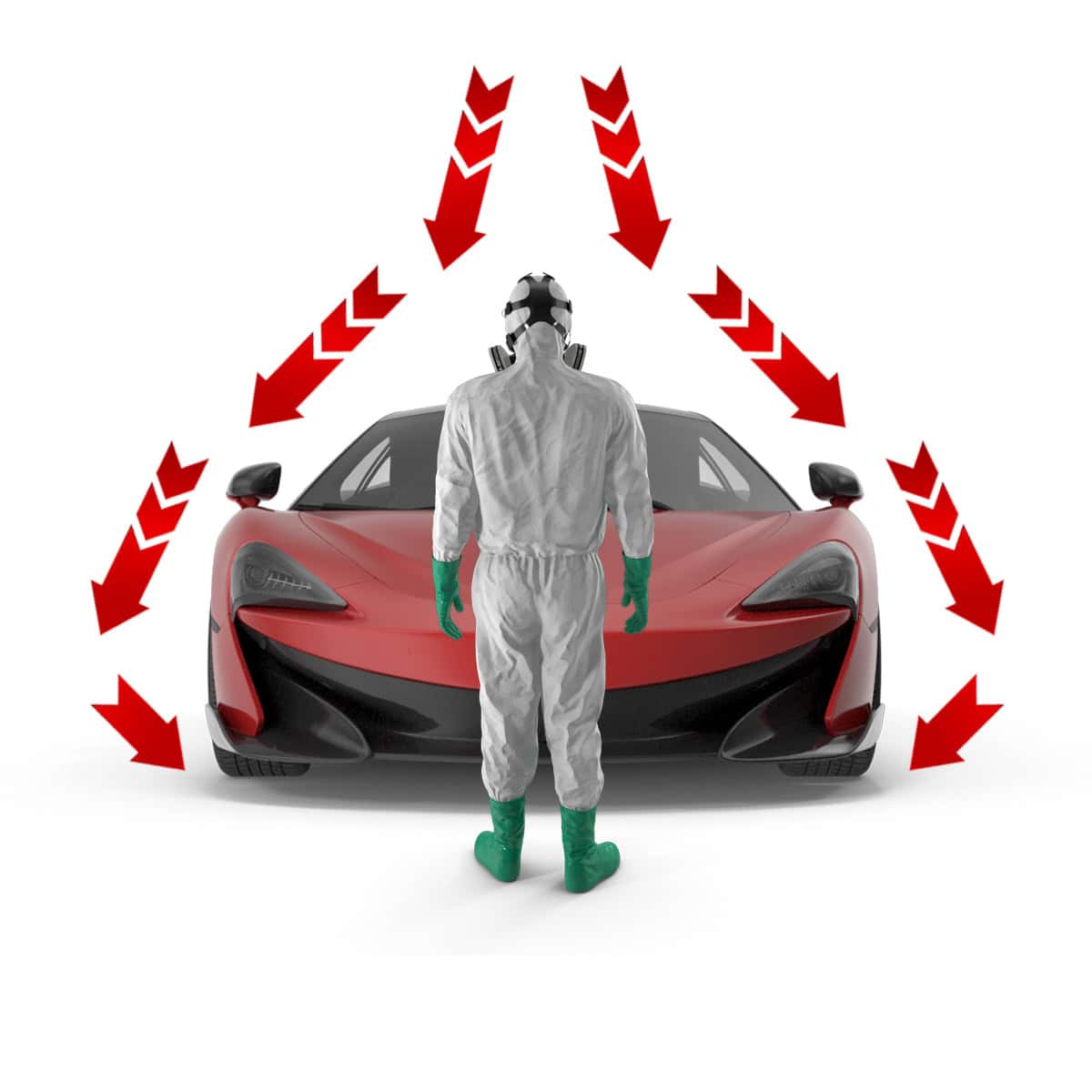

Downdraft:

A downdraft paint booth produces a draft pattern that runs straight down from the ceiling to the floor and is the most efficient and clean option. Since the air is drawn around the vehicle and exhausted under the object, it pulls overspray and contaminants downward and away from the object no matter where the operator is spraying. The risk of overspray and contamination is also greatly reduced for the painter. The only disadvantage to a downdraft paint booth is that it requires a concrete pit or it needs to be raised on steel basements with drive-up ramps to make room for the downdraft to function.

Accudraft Automotive Paint Booths

If you are thinking about purchasing an automotive paint booth for a small start up shop, then you may want to begin with a basic booth until you figure out your business model and attract new clients. Once you do that, then there are various extras and upgrades that you can add onto your booth such as a heating unit to quickly cure paint and speed up production. It’s important to think ahead before you make any final decisions – where do you see yourself and your shop in five or ten years? Accudraft is a leading manufacturer of automotive paint booths and our experts would be more than happy to answer your questions and assist you in picking the perfect paint booth for your shop. Connect with Accudraft today to learn more about the wide inventory of automotive paint booth models available to you.
