The Accudraft Titan is the ultimate in spray booth technology and high speed finishing production. Airflow and workspace conditions are engineered and optimized for the latest low VOC & waterborne paints on the market today.

Unmatched downdraft airflow and contamination control produce fantastic jobs faster, while EnergySmart technology saves you time and up to 50% on energy costs.

More jobs. Faster jobs. Lower expenses.

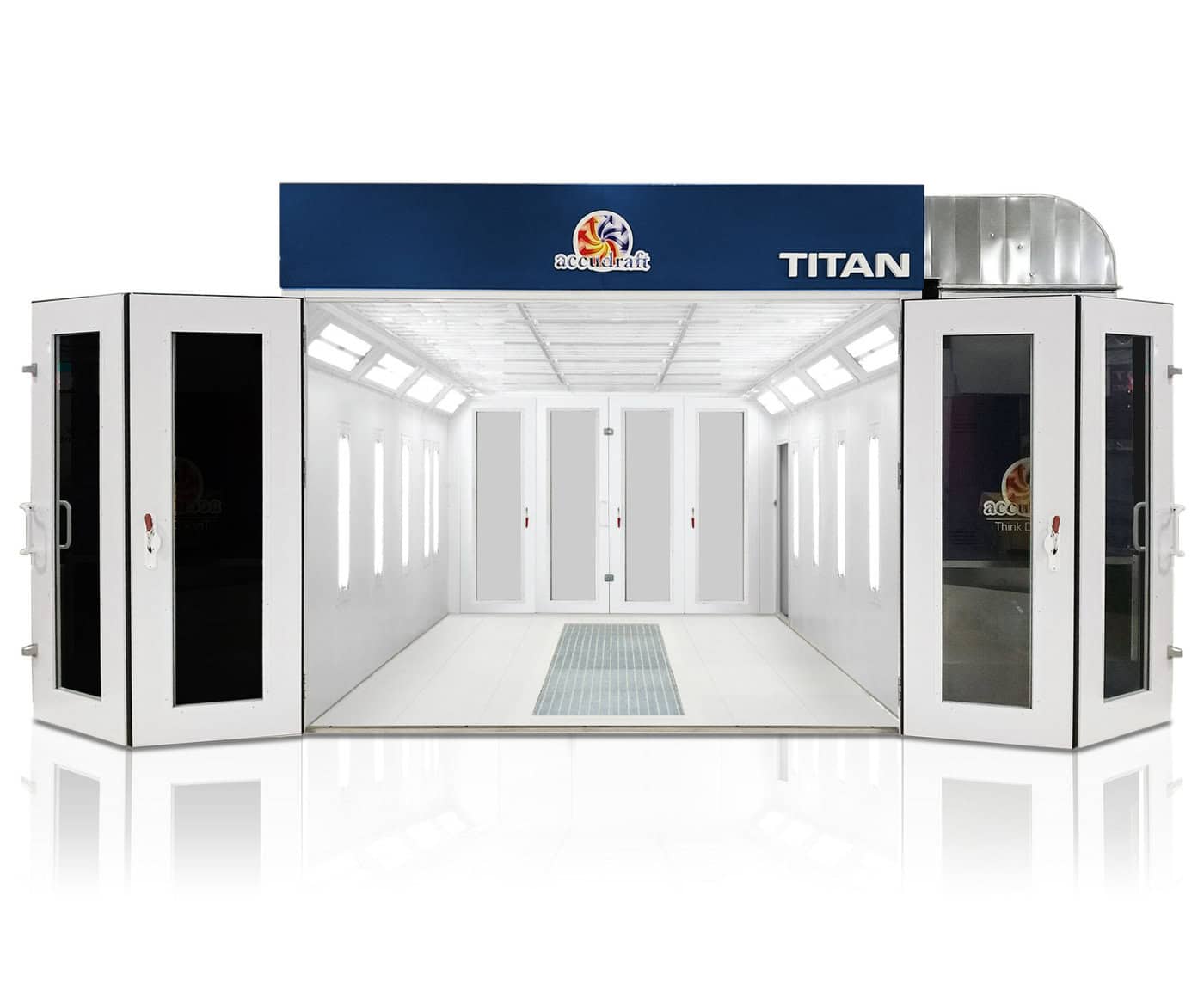

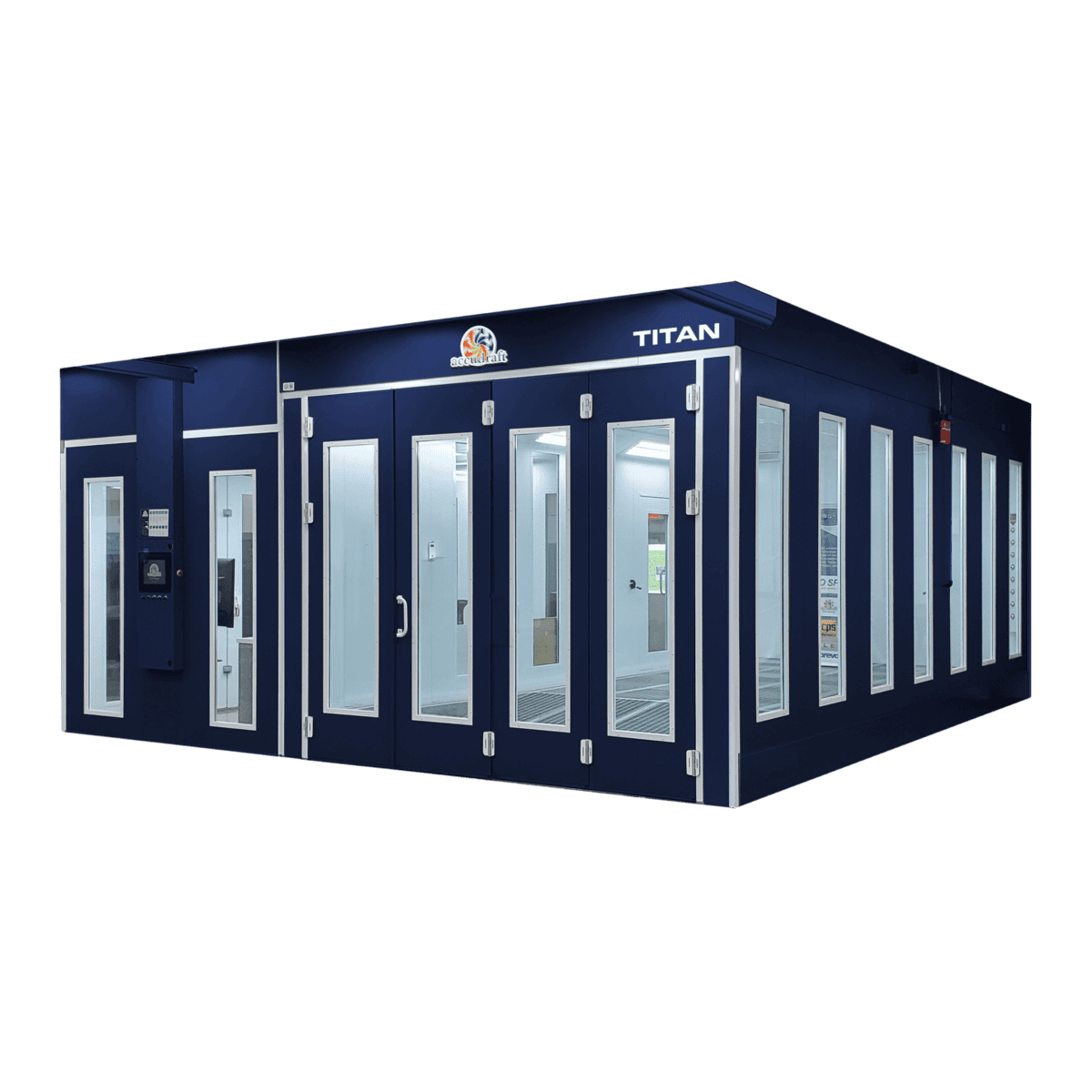

The Accudraft TITAN™ is a high powered downdraft paint booth specifically designed for any current or future waterborne facility. Using a 15 H.P. 1.5 Million BTU direct fire heating system with 20,000 CFM, the TITAN™ delivers airflow & heat specifications recommended by waterborne paint manufacturers.

All Accudraft TITAN™ models come standard with the EnergySmart™ VFD package for the ultimate in electrical energy savings.

The TITAN™ uses dual mode technology allowing the system to switch between water-based or solvent-based modes on the fly, making you able to paint today while being ready for tomorrow.

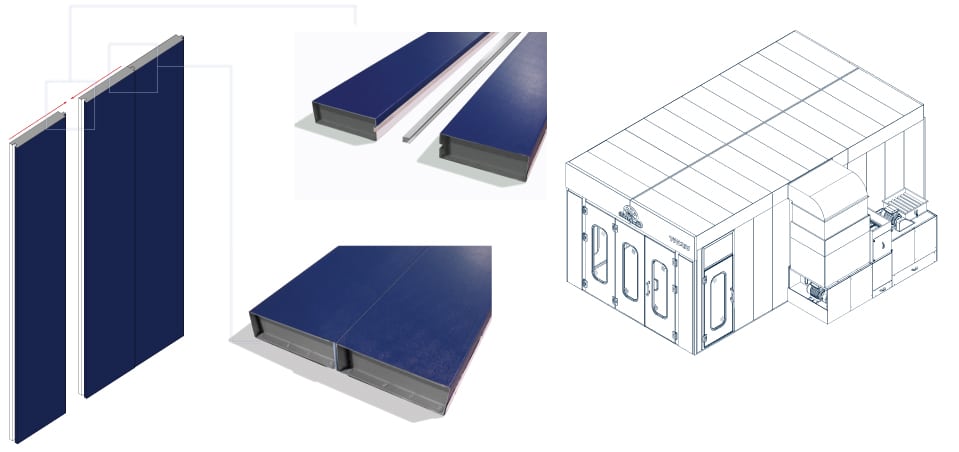

TONGUE & GROOVE WALLS

Double wall insulated construction. Tongue and groove wall panels interlock with one another to give the paint booth up to four times the seal integrity when compared to basic bolt together butt joints. Ultra White vinyl over galvanized Interior. Your choice of exterior vinyl color.

24'-Tongue-and-Groove-Walls-for-Accudraft-Paint-Booth

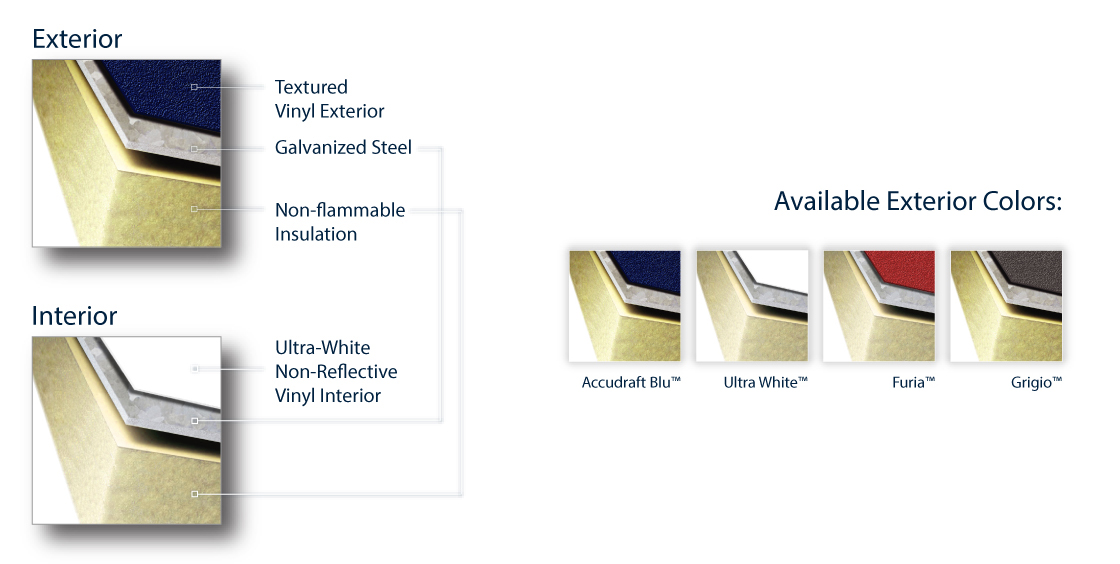

DUAL SKIN INSULATED CONSTRUCTION

Galvanized Steel
Vinyl Coated Interior & Exterior
Manufactured & Shipped with Protective Polyethylene Coating
24 Inch Interlocking Male & Female Panels
Non-flammable Insulation
Meets National Fire Protection Requirements (NFPA Compliant)
Available in Blue, White, Red, or Grey Exterior Colors

Accudraft-TITAN---Vinyl-Coating

KD™ Series Integrated Air Makeup System

The KD™ Series air makeup unit is a completely integrated intake, heat, and exhaust system designed for high production downdraft paint booths. Forward curve and backward inclined turbines provide powerful airflow through the paint booth and recycled direct fire heating provides fast heating with maximum energy efficiency. Painters can put more jobs through the paint booth per hour and generate more profits for your business.

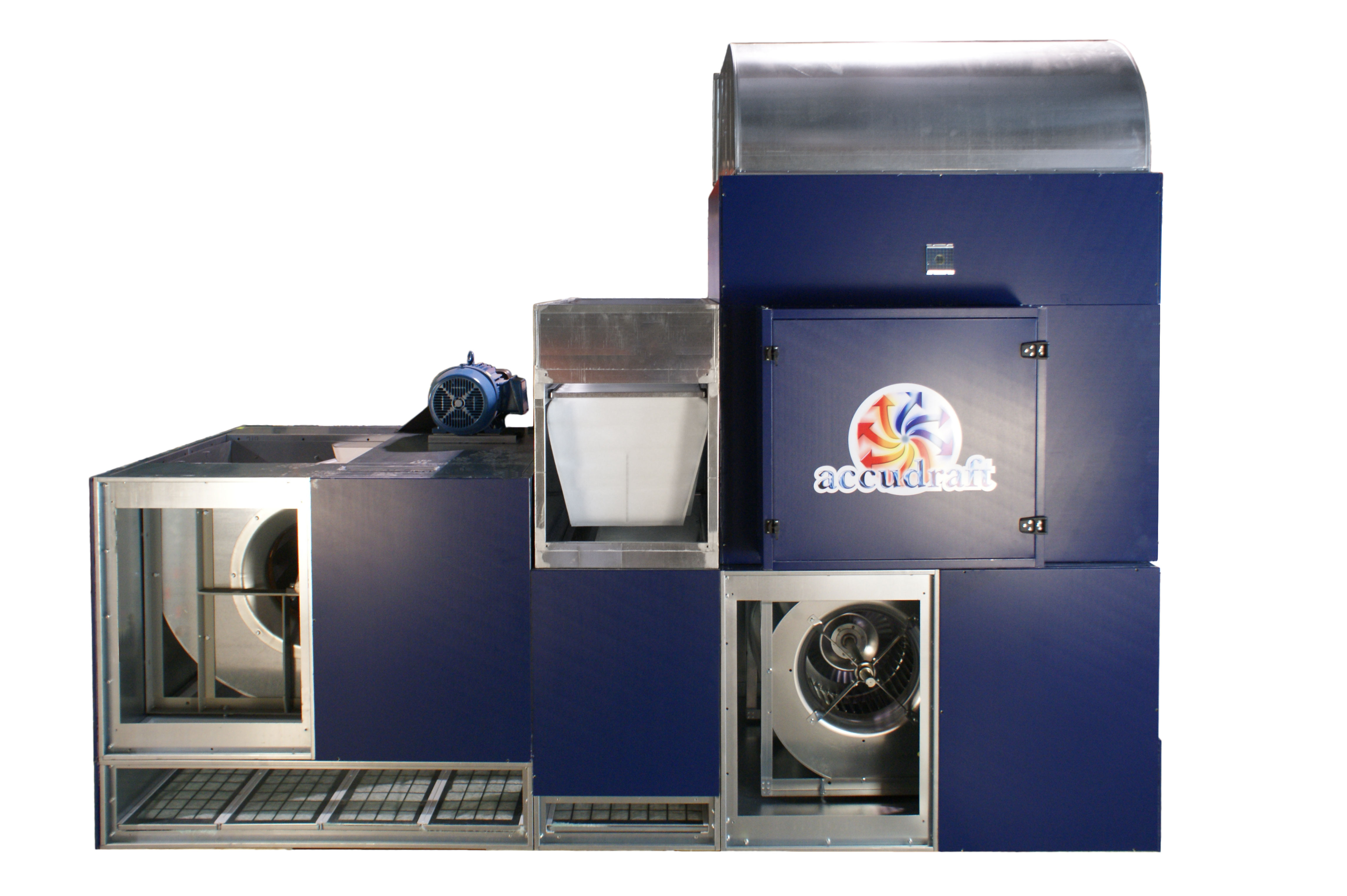

Accudraft KD 560/630R paint booth air makeup system

TIMELESS™ Direct Drive Paint Booth Air Makeup System

The TIMELESS™ Series direct drive paint booth air makeup unit is a completely integrated intake, heat, and exhaust system designed for high production downdraft paint booths. Direct drive turbine fans provide powerful airflow in a more compact footprint. Recycled direct fire heating reaches hotter temperatures faster with maximum energy efficiency.

Accudraft Timeless Direct Drive Direct Fire Paint Booth Heating System with Heat Recycle

SmartPad™ Digital Controls

Accudraft’s SmartPad™ digital control panel provides the user with all process information and settings in one compact and easy to read paint booth control unit. Choose between solvent and waterborne paint modes before you start. All processes are then automatic for that type of paint. The SmartPad™ can also integrate Accudraft’s Xcelerator™ for the ultimate in paint drying speed.

Accudraft SmartPad Paint Booth Control Panel

FOCUS™ 15″ Touchscreen Controls

FOCUS® allows the user to configure up to 5 separate programs each set to your preferences or according to coating manufacturer’s recommendations.

– Monitors humidity in the space.
– Records cost info per phase
– Records cost info per job RA#
– Painter name required per job
– Job RA# required per job

Accudraft’s FOCUS™ touchscreen control panel supports online support & services. Tech support can access any FOCUS system and monitor operations in real time.

Accudraft-FOCUS-Touchscreen-Control-Panel-for-Paint-Booth-with-Remote-Monitoring

Pitless Downdraft

The Accudraft TITAN paint booth system is also available in a pit-less downdraft design where the entire paint booth and mechanicals are installed on a raised steel basement with drive-up ramps. This provides all the benefits of a downdraft airflow paint booth system without the need for expensive concrete work. A fully grated floor provides one of the cleanest finishing environments available.

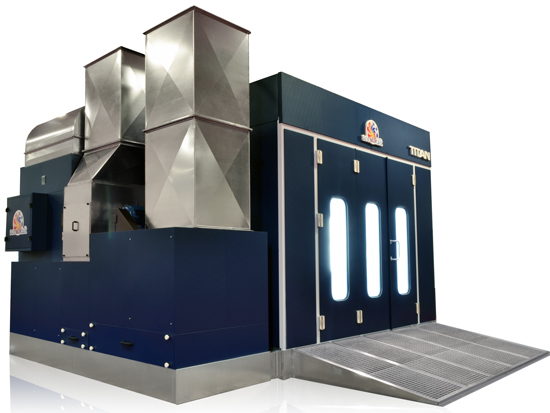

Accudraft TITAN Pitless Downdraft Automotive Paint Spray Booth in Blue Color

Outdoor Application

The TITAN paint booth system is available as a weatherproof outdoor unit with all elements installed within a self contained enclosure. Valuable shop space is saved and installation downtime is completely eliminated. The entire system can be installed while the rest of the facility keeps right on working.

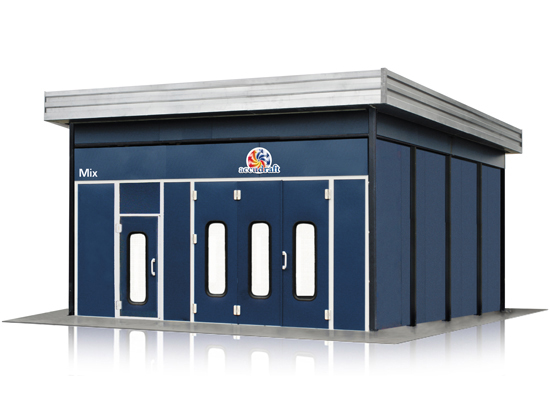

Accudraft-Outdoor-Paint-Booth-with-Side-Enclosure-in-Accudraft-Blue-Color

Overhead Generating Group

Accudraft’s Overhead Mechanical Group option allows you to fit a high performance paint booth in places where others just wont fit. The overhead paint booth air makeup system saves valuable floor space and provides maximum installation versatility for Accudraft’s downdraft paint booth models.

Overhead Space Saver Paint Booth Mechanicals

Other Options

  • Xcelerator™ Waterborne paint drying system
  • Length and Width Extensions
  • Drive Thru
  • Observation Windows in Walls
  • Overhead Paint Booth AMU
  • Timeless™ Direct Drive Paint Booth AMU
  • FOCUS Touchscreen Paint Booth Control Panel
  • Xcelerator

    The Xcelerator was developed in order to help high production collision centers meet and surpass their financial goals. Often times, productivity is held back by paint drying time. Even the best managed collision center will eventually reach a production limit due to the finishing & drying process. The Accudraft Xcelerator can nearly double finishing speeds overnight, turning any new or existing spray booth into a high performance machine.

    IRT Handheld Infrared Dryer

    The IRT handheld dryer is a great addition to any finishing system. Dry spot jobs and hard-to-reach places in a snap.

    Accudraft Infrared Curing Handheld Unit

    IRT Hyperion Rail Mounted Short Wave Infrared Drying System

    Reach just about anywhere on any job. High, low, side panel, top panel. It’s all the same to the IRT Hyperion rail system. Simply slide the adjustable arm anywhere you need it along the length of the booth or prep area and position the arm at the best angle to dry your job. The Hyperion will take it from there.

    Accudraft Infrared Curing Rail Mounted System
