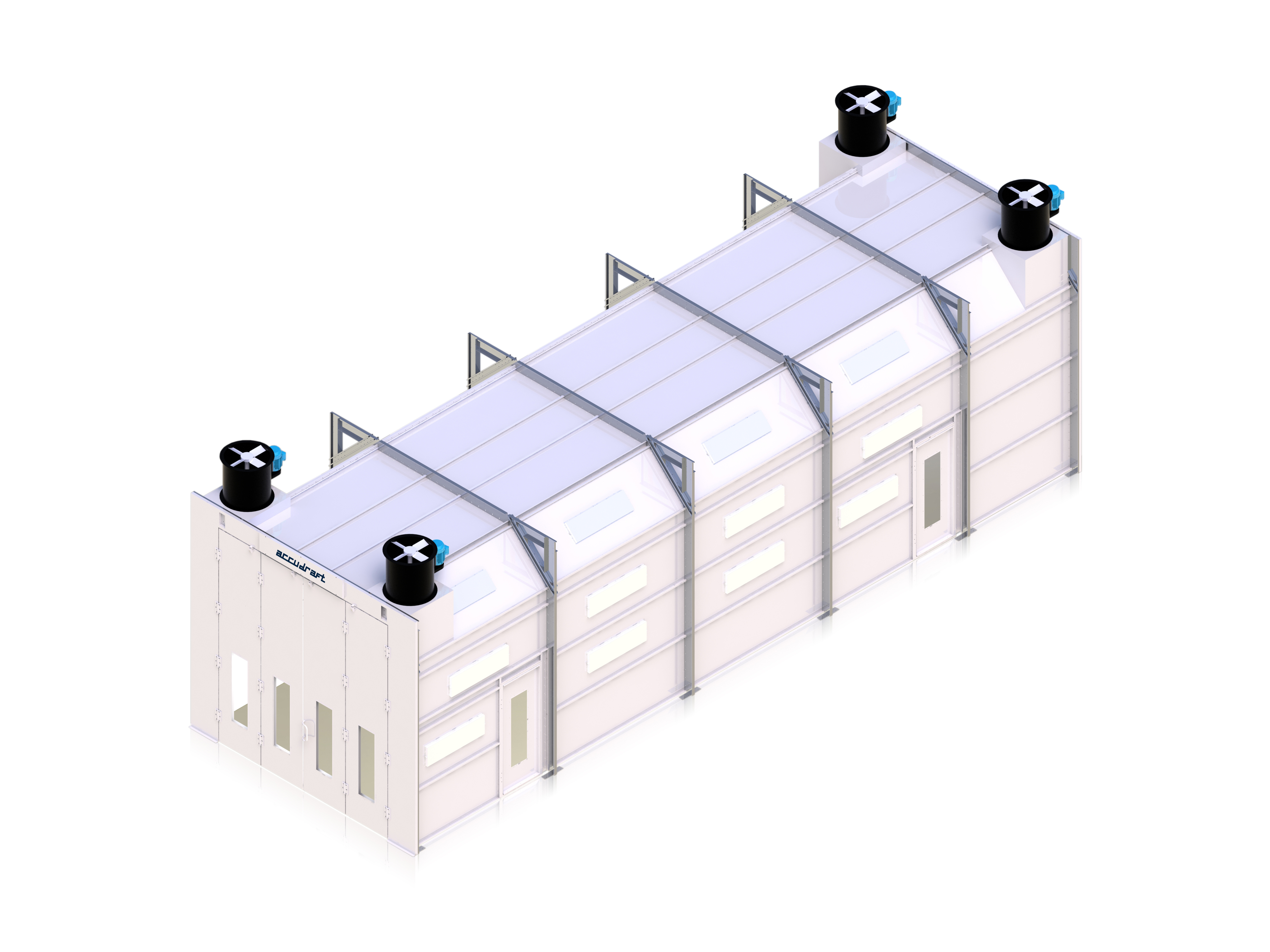

Crossflow Truck Paint Booth

The Accudraft PRO Series crossflow truck paint booth delivers heated or non heated air to either the front or rear of the paint booth and air is exhausted out the opposite end of the workspace. No concrete pits or excavation necessary. Shown below with optional white on white finish option.


Download Product Flyer

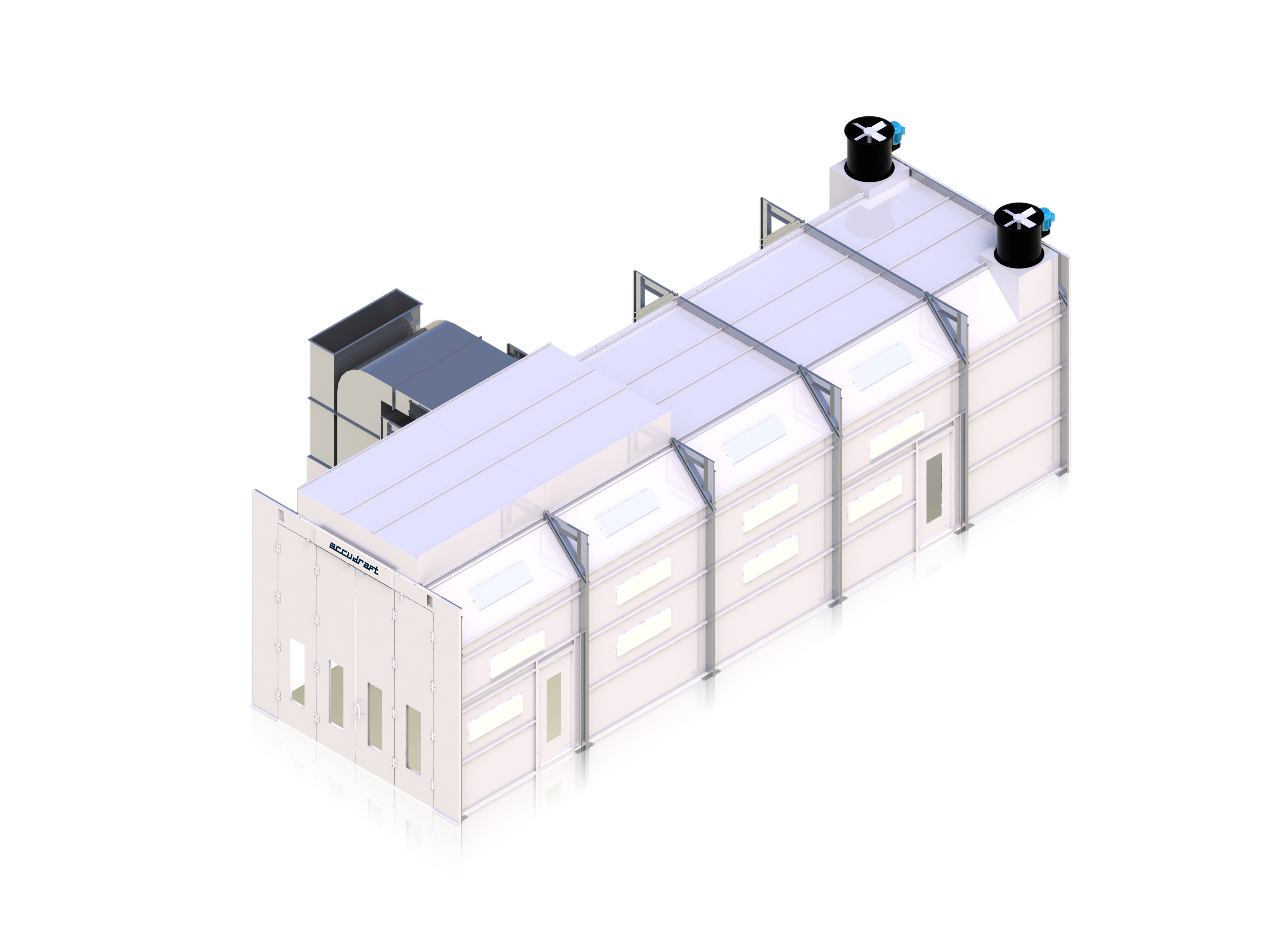

Semi Downdraft Truck Paint Booth

Also known as a modified downdraft paint booth or simply “semi down paint booth”. Heated or non heated air enters the ceiling of the paint booth, flows along the length of the cabin and is exhausted out the rear of the paint booth. No concrete pits or excavation necessary. Shown below with optional heating system and white on white finish option.


Download Product Flyer
Download Product Brochure

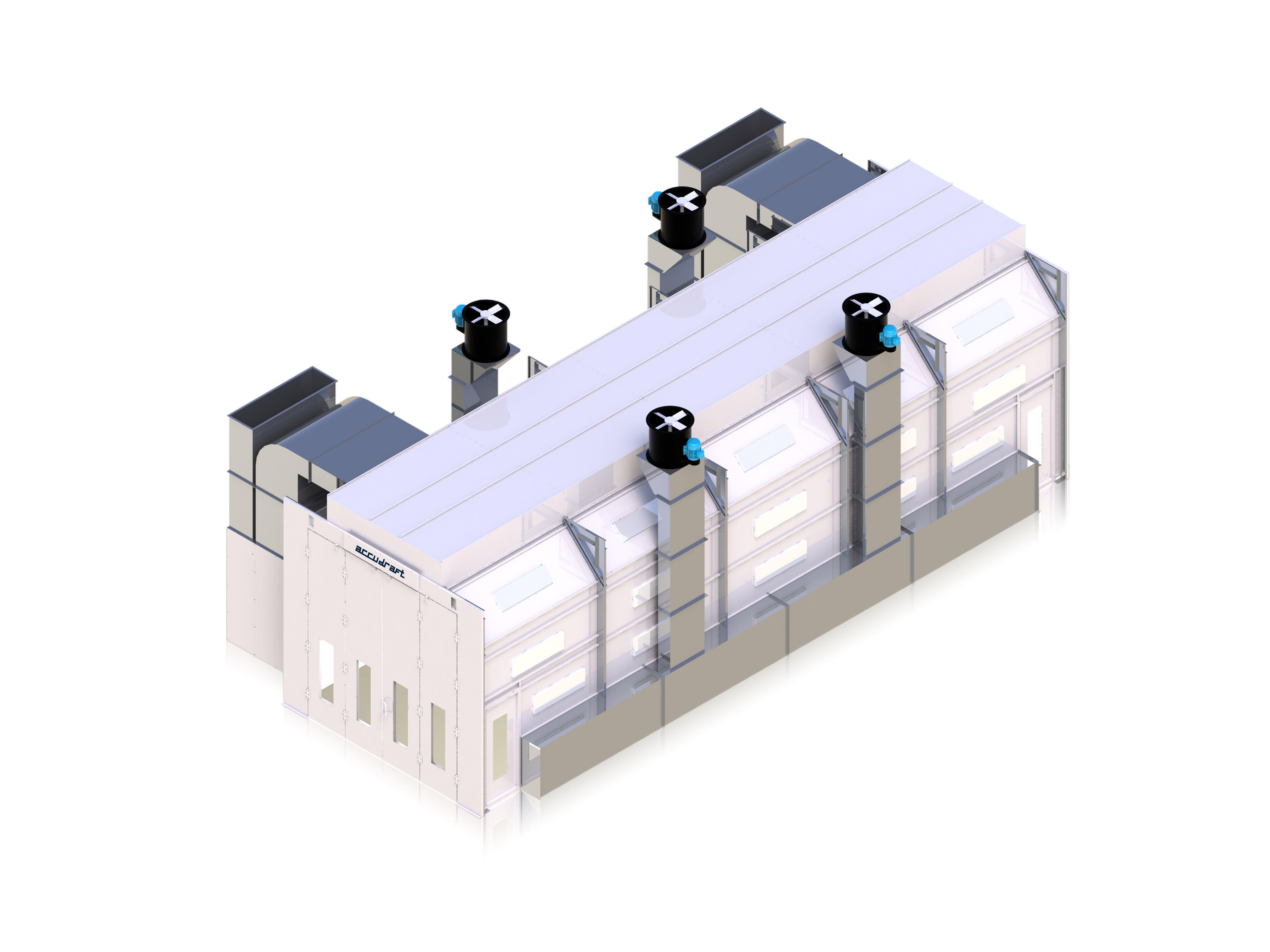

Side Downdraft Truck Paint Booth

Also known as a “side draft” or “side down” paint booth. Heated or non heated air enters the ceiling of the paint booth, flows downward from ceiling to floor and is exhausted out the side walls. No concrete pits or excavation necessary. Shown below with optional heating system and white on white finish option.


Download Product Flyer

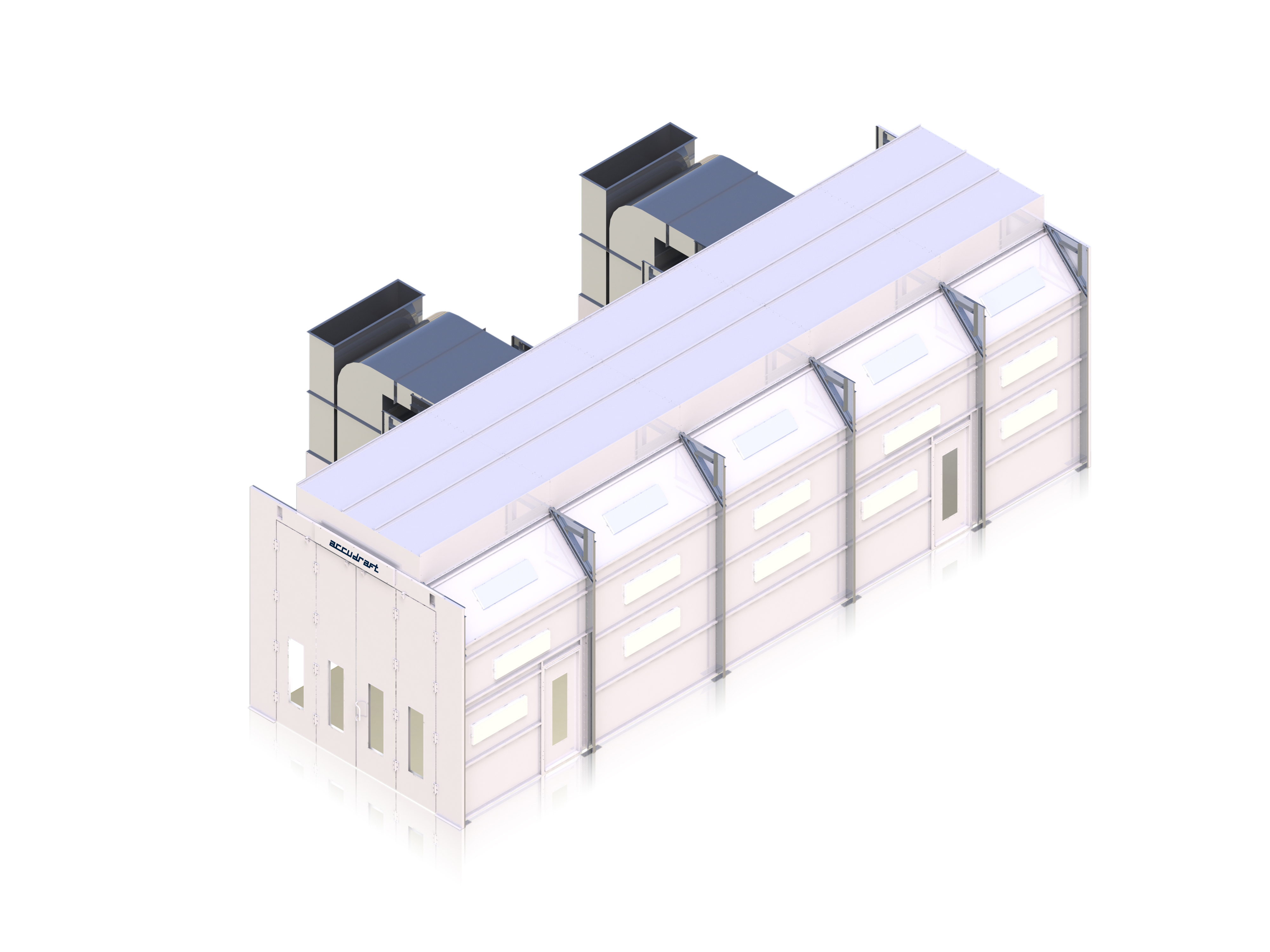

Downdraft Truck Paint Booth

Heated or non heated air enters the ceiling of the paint booth, flows downward from ceiling to floor and is exhausted through the floor underneath the vehicle and painter. Shown below with optional heating system and white on white finish option.


Download Product Flyer

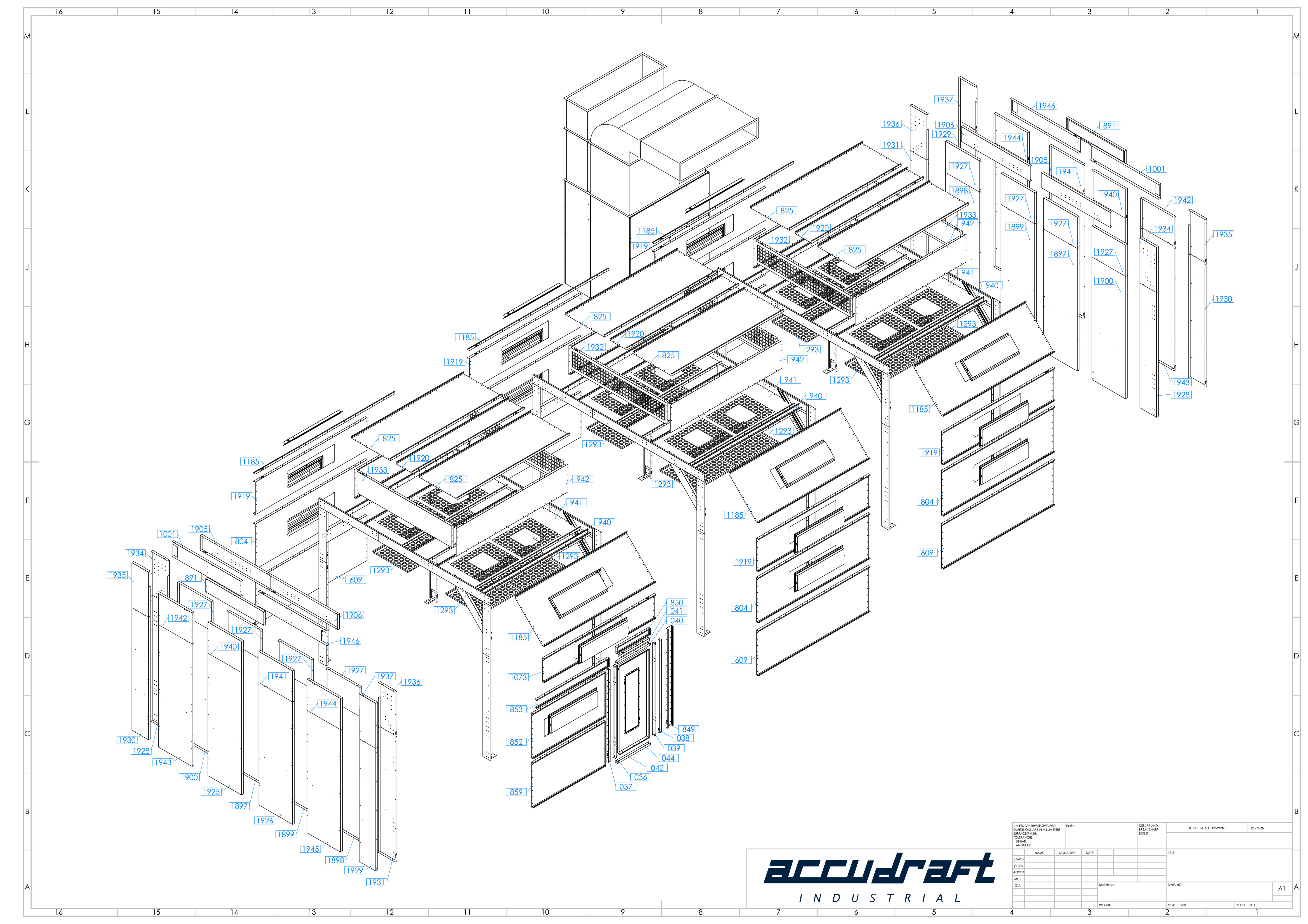

Computerized Pre-Punched Numbered Design

All panels are made with pre-punched bolt holes and punched identification numbers to make installation easy. 18 gauge steel in galvanized or white finish.

Spark Proof Tube Axial Exhaust Fan

Spark-proof construction allows this fan to exhaust hazardous or explosive gases. Regreasable ball bearings provide easy maintenance from outside the fan body extending usable life and performance.

Paint Booth Controls

ETL listed paint booth controls include all fan motor and light contacts with thermal overload protection on every circuit. Filter pressure gauge, solenoid, and air flow switches included.

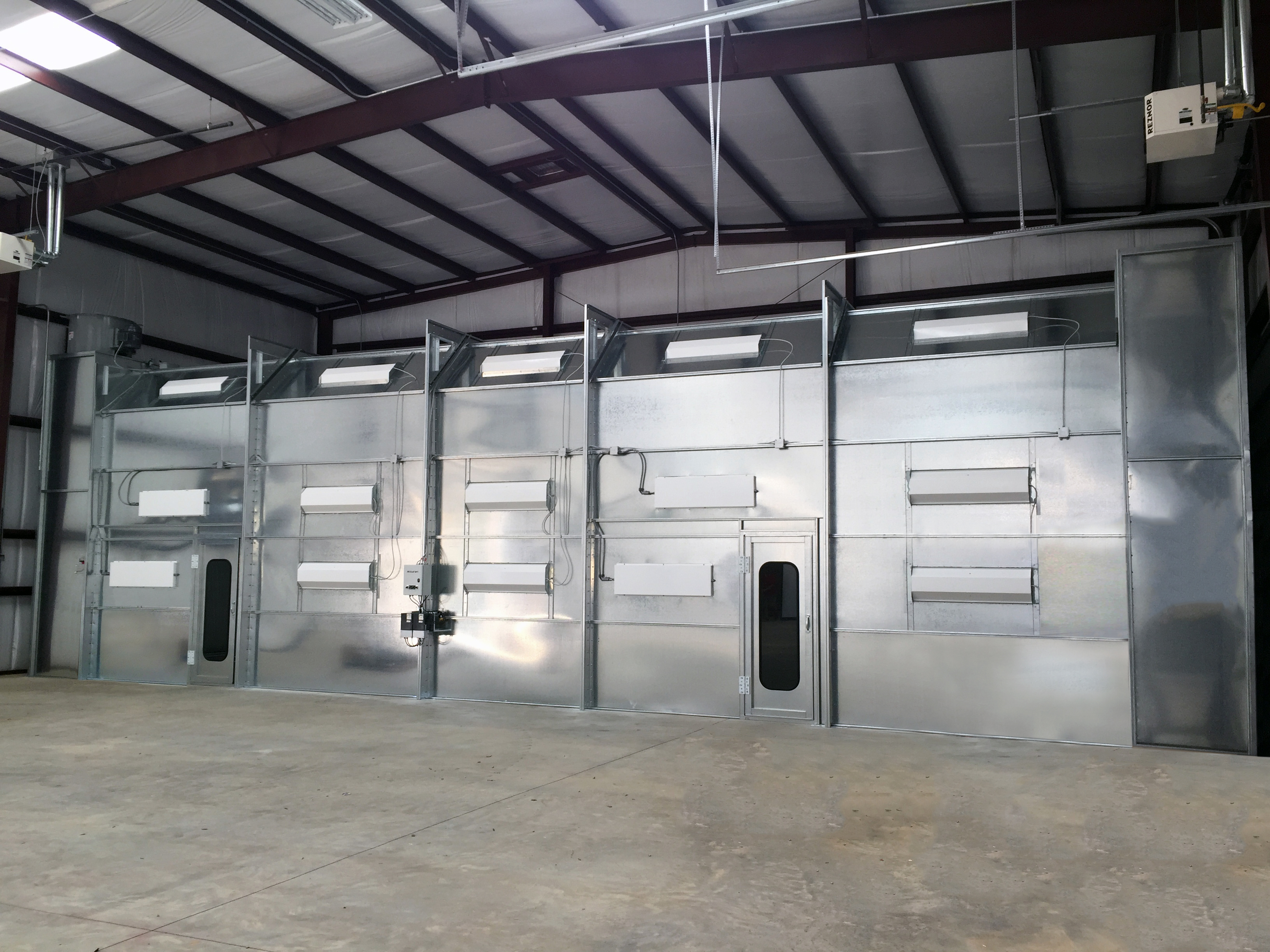

Galvanized Finish

Single skin pre-punched galvanized steel

White on White Finish

Pre-coated white baked on enamel interior and exterior

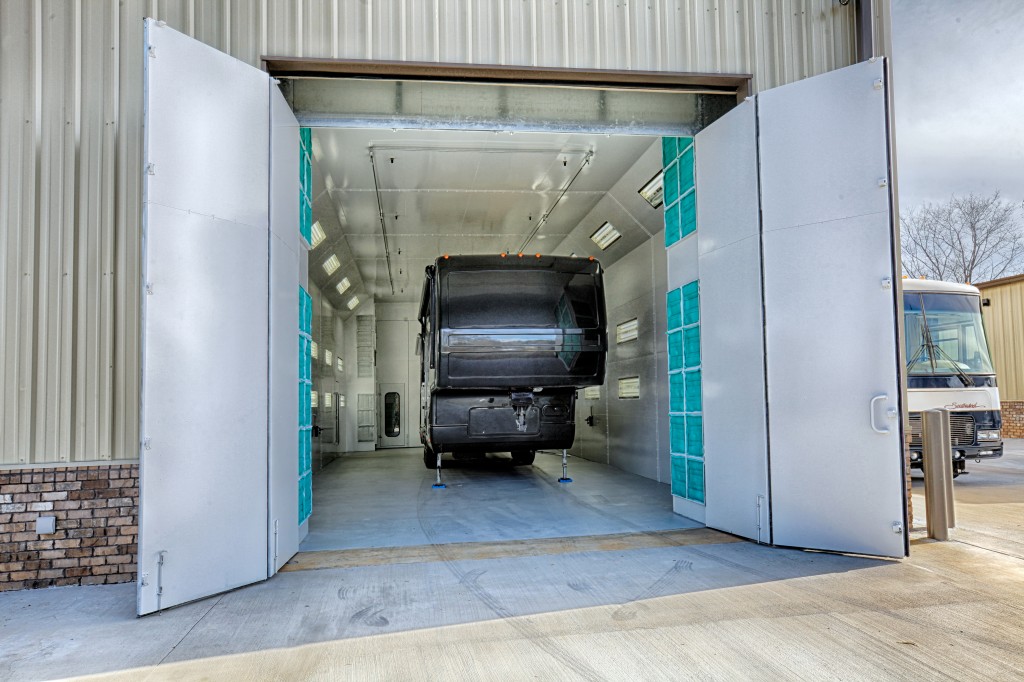

Drive Through

Drive in and drive out in one direction. Keep your shop flowing.

Tempered Glass Windows

Tempered safety glass windows in main drive-in doors and side man door.

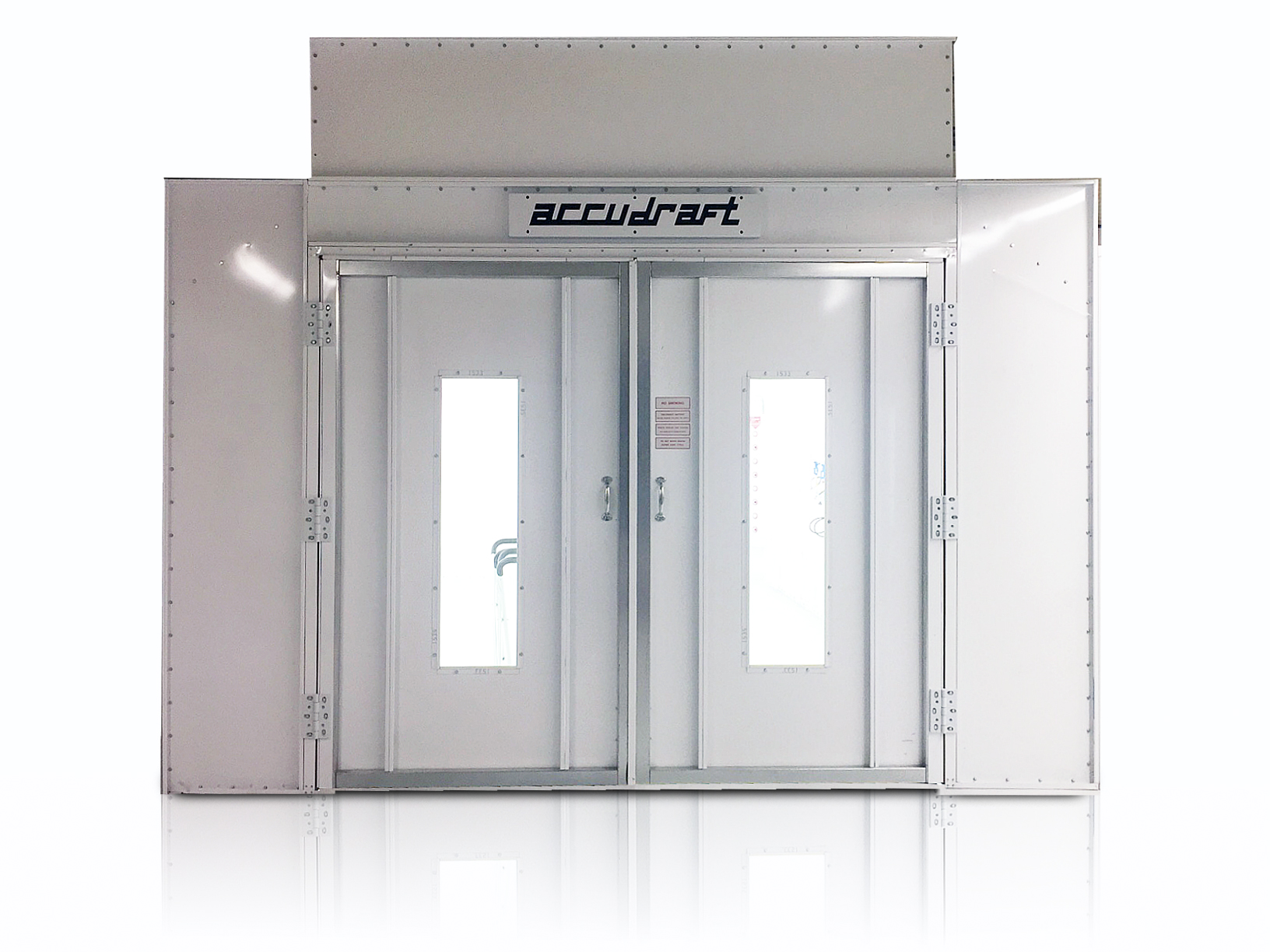

PRO-SERIES-Paint Booth with Windows

PRO Series Standalone AMU

Add heated makeup air for proper application temperatures during spraying and heated cure cycle to process jobs quickly.

PRO Series Paint Mixing Room

Add a listed pre-fabricated paint mixing room that meets all necessary codes*. Either attached or standalone.

* Meeting all regulations is not guaranteed. Final approval of location of mixing room and application of codes and regulations on site are up to the local inspector and the authority having jurisdiction.

Attached-Paint-Mixing-Room

Xcelerator

A high velocity air jet nozzle system designed to flash off waterborne coatings in a fraction of the time. The Accudraft Xcelerator can nearly double finishing speeds overnight, turning any new or existing spray booth into a high performance machine.

IRT Handheld Infrared Dryer

The IRT handheld dryer is a great addition to any finishing system. Dry spot jobs and hard-to-reach places in a snap.

Accudraft Infrared Curing Handheld Unit

IRT Hyperion Rail Mounted Short Wave Infrared Drying System

Reach just about anywhere on any job. High, low, side panel, top panel. It’s all the same to the IRT Hyperion rail system. Simply slide the adjustable arm anywhere you need it along the length of the booth or prep area and position the arm at the best angle to dry your job. The Hyperion will take it from there.

Accudraft Infrared Curing Rail Mounted System

You may also like…

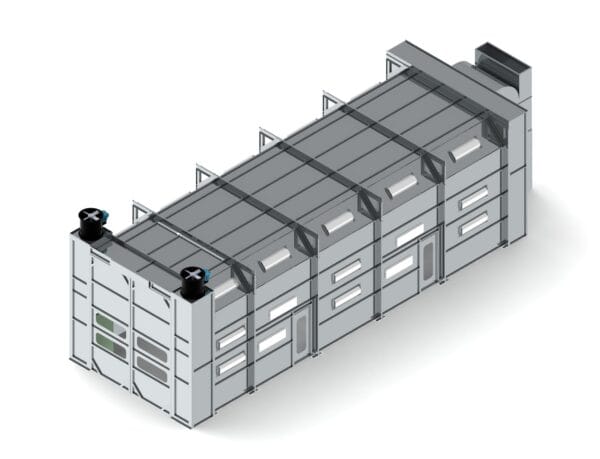

TX Series Truck Paint Booths
