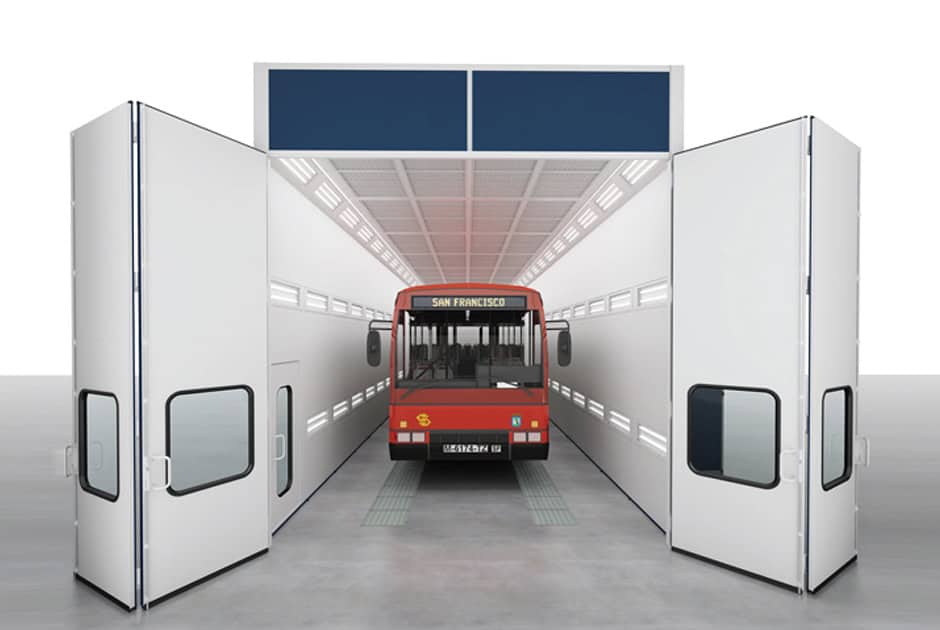

Accudraft TX™ truck paint booths are engineered according to your specific needs. Large size cabins with shadowless lighting design allow you to paint trucks and large equipment in a controlled environment. Heated makeup air can be added for better application temperatures and heated cure cycle allows you to paint more trucks per day. A multitude of engineering options and accessories make the Accudraft TX™ truck paint booth flexible to fit your exact needs. Control heat, humidity, add integrated man-lifts, truck lifts, put the whole thing outdoors.. sky’s the limit. Let us know what you need, Accudraft will build it for you.

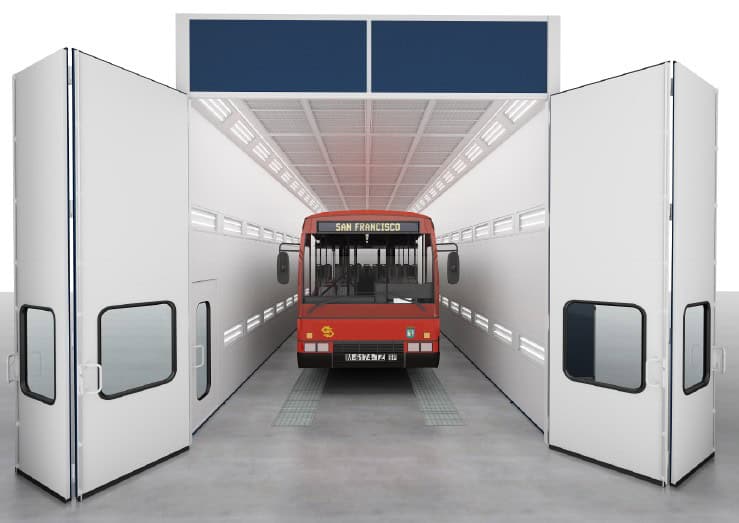

TX Semi Downdraft Truck Paint Booth

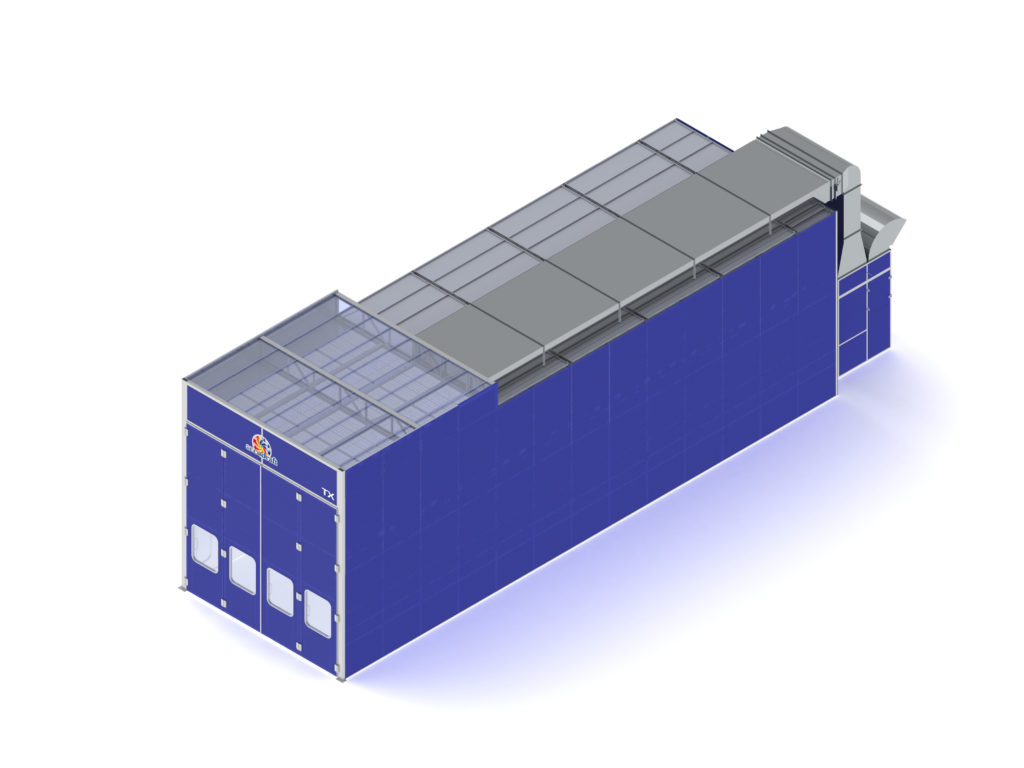

The Accudraft TX truck paint booth in semi downdraft configuration delivers heated air to the upper plenum in the front of the paint booth ceiling and air is exhausted out the rear of the work space. Full heat recycle through a rear plenum gives you an efficient high-performance semi downdraft paint booth without sacrificing heat and energy efficiency. No concrete pits or excavation necessary.

TX Semi Downdraft Truck Paint Booth

TX Side Downdraft Truck Paint Booth

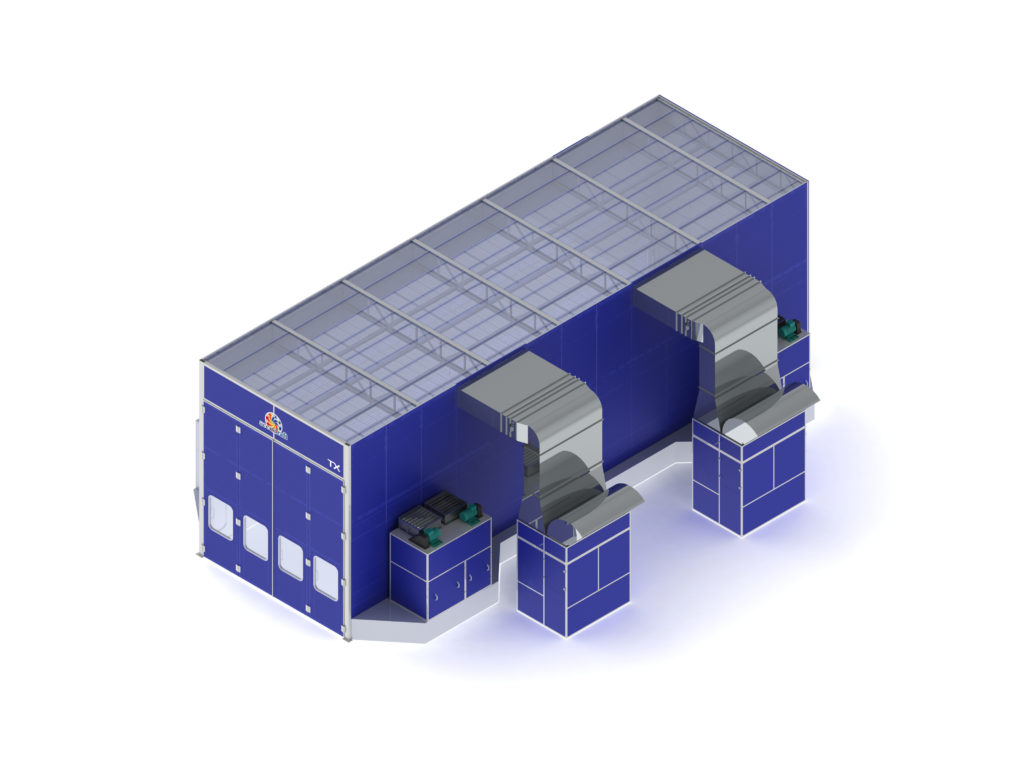

The Accudraft TX truck paint booth in side draft configuration delivers heated air to the upper plenum above the paint booth ceiling and air is exhausted out the bottom of the side walls. Side draft configurations give you the closest draft pattern to a downdraft without having to do concrete work. Full heat recycle. No concrete pits or excavation necessary.

TX Side Downdraft Truck Paint Booth

TX Downdraft Truck Paint Booth

The Accudraft TX truck paint booth in downdraft configuration delivers heated air to the upper plenum above the paint booth ceiling and air is exhausted through the floor underneath the vehicle and painter.

TX Downdraft Truck Paint Booth

DUAL SKIN INSULATED CONSTRUCTION

Galvanized Steel
Vinyl Coated Interior & Exterior
Manufactured & Shipped with Protective Polyethylene Coating
24 Inch Interlocking Male & Female Panels
Non-flammable Insulation
Meets National Fire Protection Requirements (NFPA Compliant)
Available in Blue, White, Red, or Grey Exterior Colors

Accudraft-TITAN---Vinyl-Coating

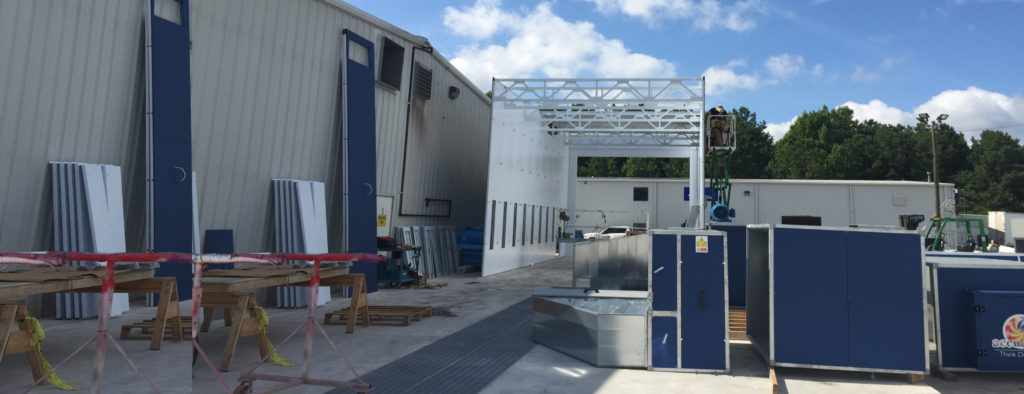

TX Truck Paint Booth Construction

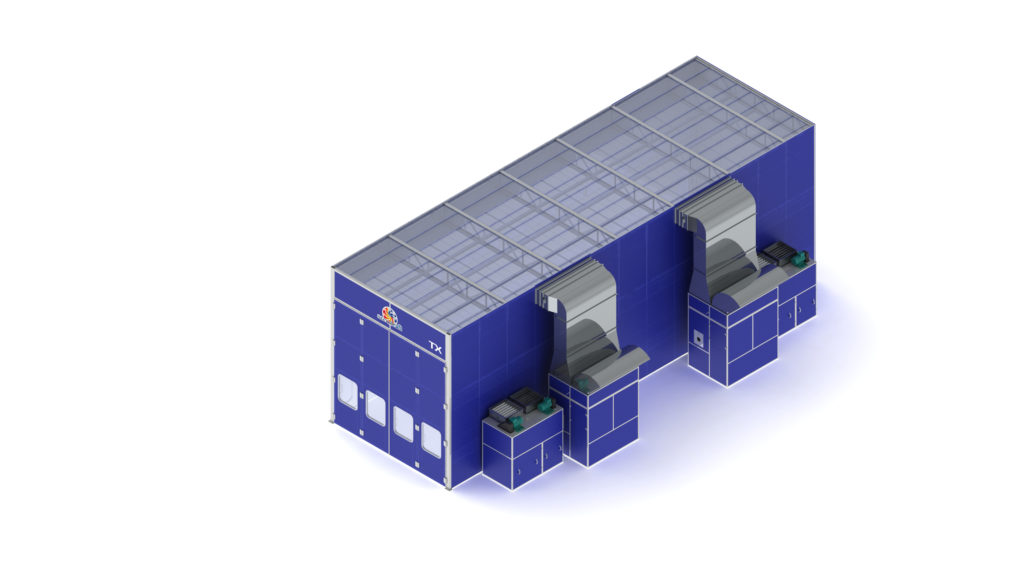

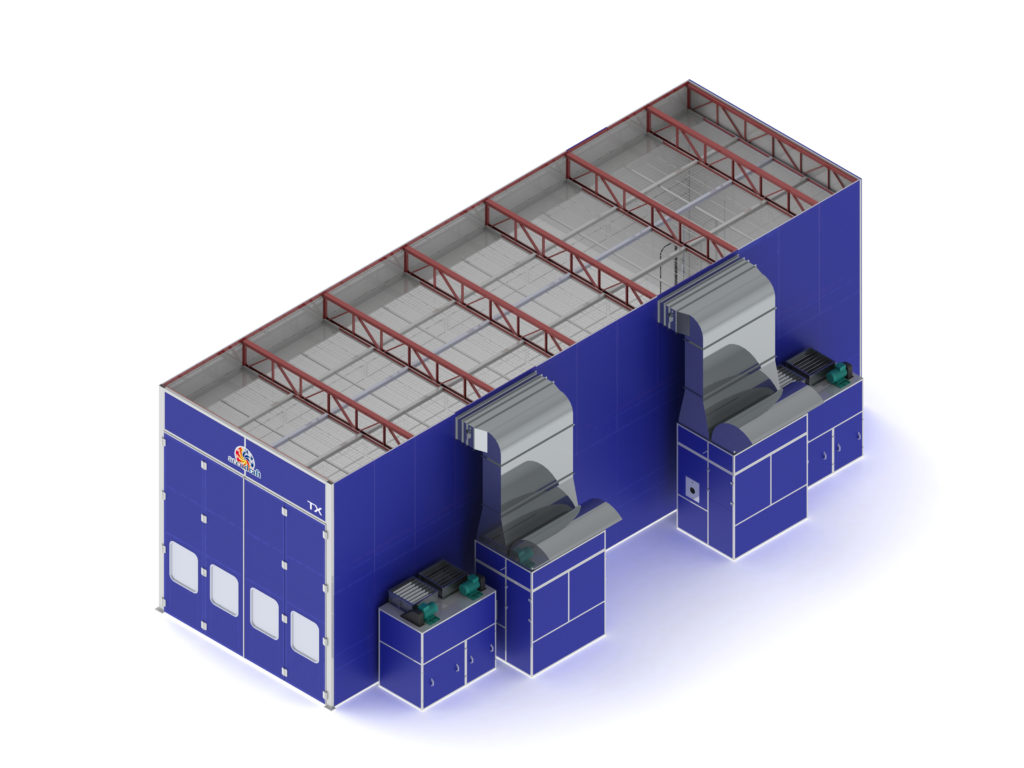

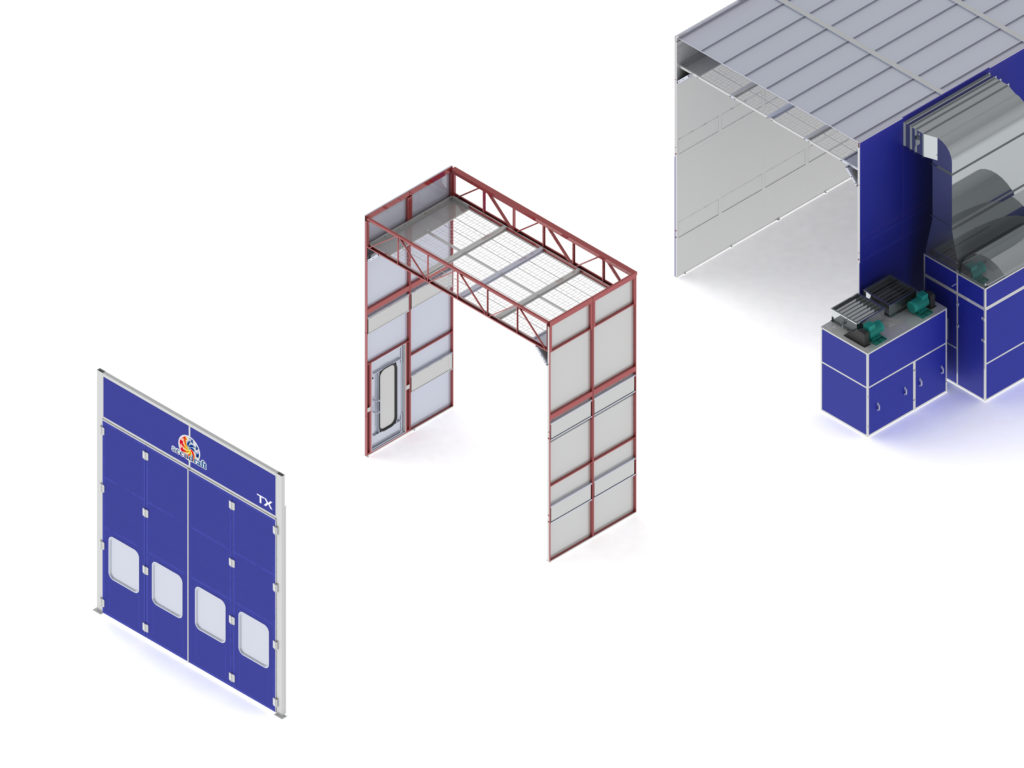

Accudraft’s TX truck paint booth platform is constructed of heavy tube-steel reinforced bolt-together wall panels and insulated with non-flammable NFPA compliant insulation. Welded steel open web truss systems compose the span structure and provide support for overhead structures and mechanicals when required.

Accudraft TX Truck paint booth

TX Truck Paint Booth Construction

The result is a ruggedly constructed structure that is versatile for a number of different configurations no matter how large the size. The TX platform is used for some of Accudraft’s largest paint booths for truck paint booths, aerospace paint booths, and large industrial paint booth and blast booth applications.

Accudraft TX Truck paint booth

KD™ 710/710R Integrated Air Makeup System

The KD™ Series air makeup unit is a completely integrated intake, heat, and exhaust system designed for high production downdraft paint booths. Forward curve and backward inclined turbines provide powerful airflow through the paint booth and recycled direct fire heating provides fast heating with maximum energy efficiency. Painters can put more jobs through the paint booth per hour and generate more profits for your business. The KD 710/710R produces up to 30,000 CFM and 2.5 Million Btu/hr of heating power.

KD-710 Truck Paint Booth Makeup Air Unit

KD™ 500 and 560 Integrated Air Makeup System

The KD™ 500 and 560 air makeup units provide more options when it comes to providing specific CFM requirements. Just like the 710, the 500 and 560 are completely integrated intake, heat, and exhaust systems designed for high production downdraft paint booths. Forward curve and backward inclined turbines provide powerful airflow through the paint booth and recycled direct fire heating provides fast heating with maximum energy efficiency. Painters can put more jobs through the paint booth per hour and generate more profits for your business.

Accudraft KD 560/630R paint booth air makeup system

SmartPad™ Digital Controls

Accudraft’s SmartPad™ digital control panel provides the user with all process information and settings in one compact and easy to read paint booth control unit. Choose between solvent and waterborne paint modes before you start. All processes are then automatic for that type of paint. The SmartPad™ can also integrate Accudraft’s Xcelerator™ for the ultimate in paint drying speed.

Accudraft SmartPad Paint Booth Control Panel

FOCUS™ 15″ Touchscreen Controls

FOCUS® allows the user to configure up to 5 separate programs each set to your preferences or according to coating manufacturer’s recommendations.

– Monitors humidity in the space.
– Records cost info per phase
– Records cost info per job RA#
– Painter name required per job
– Job RA# required per job

Accudraft’s FOCUS™ touchscreen control panel supports online support & services. Tech support can access any FOCUS system and monitor operations in real time.

Accudraft-FOCUS-Touchscreen-Control-Panel-for-Paint-Booth-with-Remote-Monitoring

Pitless Downdraft

The Accudraft TX downdraft truck paint booth configuration is also available in a pit-less downdraft design where the entire paint booth and mechanicals are installed on a raised steel basement with drive-up ramps or flush center floor section. This provides all the benefits of a downdraft airflow paint booth system without the need for expensive concrete work.

Outdoor Application

The TX truck paint booth system is available as an outdoor unit with all elements installed within a self contained enclosure. Valuable shop space is saved and installation downtime is completely eliminated. The entire system can be installed while the rest of the facility keeps right on working.

Outdoor Truck Paint Booth

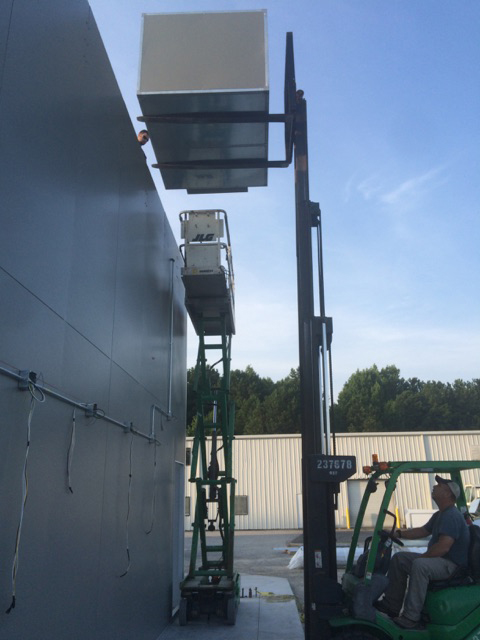

Overhead Mechanicals

The TX truck paint booth system is available with all exhaust and makeup air units overhead. Mechanicals are supported by a rigid paint booth structure that makes the entire system a standalone piece that is self supporting and does not need to be attached to the building structure. This option saves valuable floor space and maximizes flow through the facility.

Truck Paint Booth Overhead Makeup Air Unit

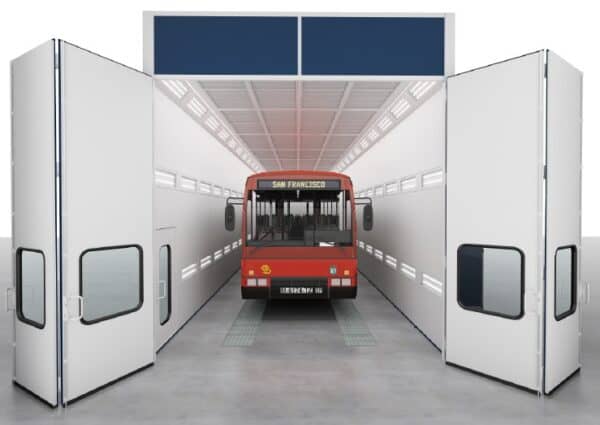

Rollup Doors

The TX truck paint booth system is available with either standard bi-folding doors or with rolling doors that are operated at a touch of a button. Roll-up doors on the TX paint booth eliminate the need for extra space required on either end of the booth so that the paint booth can be installed near an opening in the building. A rollup door in the middle of the paint booth turns a TX truck paint booth into a double booth that lets you do two jobs at once or only run half of the paint booth if that is all you need at the time. This saves energy and maximizes the system’s productivity.

Rooftop Heated Makeup Air Units

The TX truck paint booth makeup air units may be installed on the roof of the building. Ducts are installed to bring heated or conditioned air through the paint booth and then the air is either exhausted completely or recycled 80% in cure mode.

Other Options

  • Xcelerator™ Waterborne paint drying system
  • Length, Width and Height Extensions
  • Drive Thru
  • Observation Windows in Walls
  • 3-Axis Painter’s Lifts

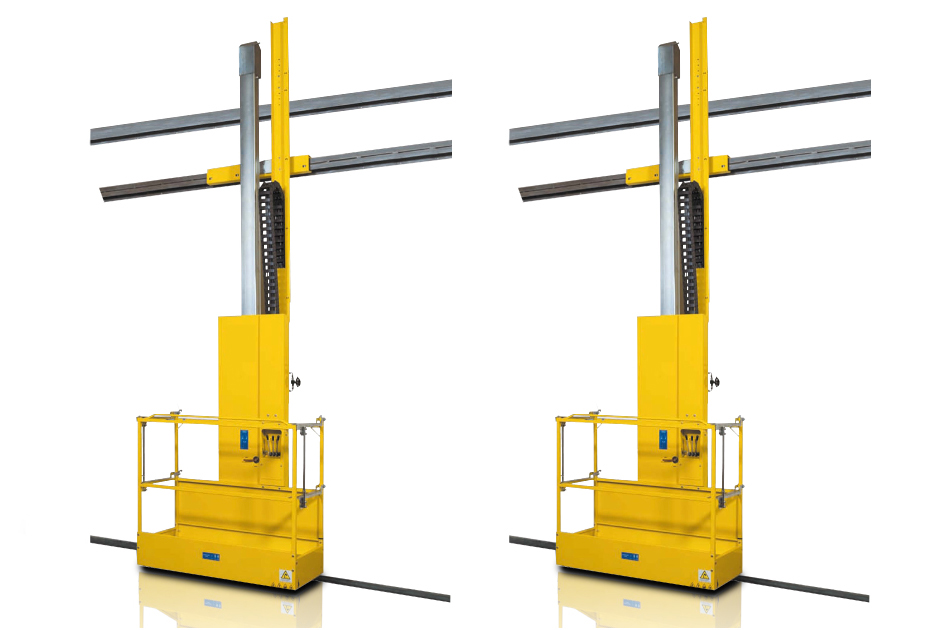

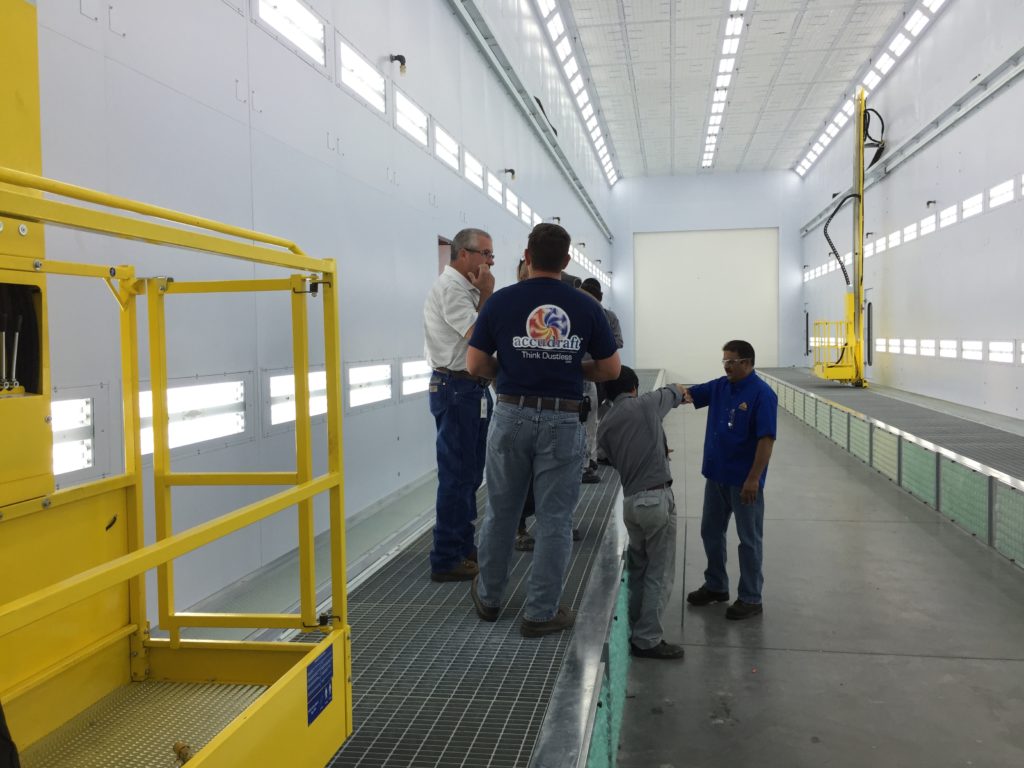

    3-Axis integrated man-lifts allow your painter to reach the entire job with ease. Methods such as ladders, scaffolds, and even scissor lifts take too much time and leave too much on the painter. Jobs take longer and a lot of the painter’s time is spent in positioning and re-positioning themselves. All that extra work and moving up and down can lead to slow cycle time, costly mistakes in the paint job due to over reaching, and it can even cause unsafe conditions for the painter. The addition of 3-axis painter’s lifts in your paint booth gives your painters the tool to get where they need to be at the touch of a joystick. All tools are kept in the basket with the painter where he can easily reach them. All this extra time and safety applies not only to the painting portion of the job, but also to all the other phases like masking, prepping, touch up etc. If you are installing a truck paint booth or larger paint booth, 3-Axis painter’s lifts are an absolute must.

    Heat Reclaim

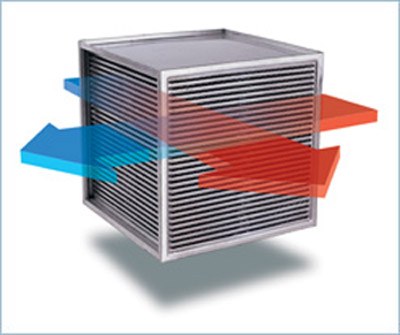

    Heat reclaim maximizes your truck paint booth’s fuel efficiency by preheating outdoor air with heat that would otherwise be exhausted. Add heat reclaim to your truck paint booth especially if you’re located in a region that experiences cold weather. Lower your truck paint booth fuel costs. Reclaim the heat you’ve already paid for.

    Paint Booth Heat Recovery System

    LED Lighting

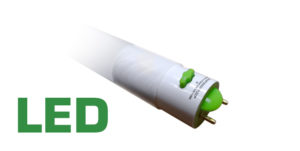

    On a big paint booth application like truck paint booths, daylight corrected LED lighting is an important option. LED lighting maximizes brightness in the work space and pays for itself in energy efficiency. The more bulbs in your truck paint booth, the more energy you save.

    Accudraft-LED-Lighting-for-Paint-Booth

    Xcelerator

    A high velocity air jet nozzle system designed to flash off waterborne coatings in a fraction of the time. The Accudraft Xcelerator can nearly double finishing speeds overnight, turning any new or existing spray booth into a high performance machine.
